$99,500|
421
|
1

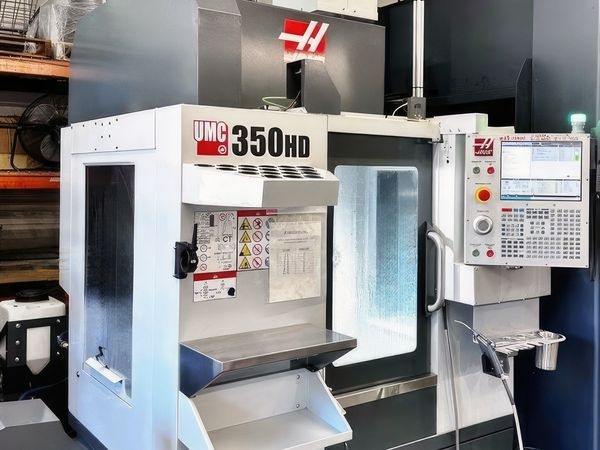

This 2023 HAAS UMC350HD is a first-rate addition to any setting that requires high-precision and top performance. With an X Axis travel of 15", Y Axis travel of 14", and Z Axis travel of 12", and a capable spindle motor of 15...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 15"
Y Axis Travel: 14"
Z Axis Travel: 12"
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 18 ATC
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
B Axis Travel: +120/-45 Degrees
C Axis Travel: 360 Degrees
Platter Diameter: 9.10 in
Max Torque: 46.0 ft-lbf @ 1700 rpm
Drive System: Inline Direct-Drive
Bearing Lubrication: Air / Oil Injection
Cooling: Air Cooled
Dimensions: 102" x 91" x 98.5"
Weight: 6,420 LBS
Max Table Load: 100 LBS
Y Axis Travel: 14"
Z Axis Travel: 12"
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 18 ATC
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
B Axis Travel: +120/-45 Degrees
C Axis Travel: 360 Degrees
Platter Diameter: 9.10 in
Max Torque: 46.0 ft-lbf @ 1700 rpm
Drive System: Inline Direct-Drive
Bearing Lubrication: Air / Oil Injection
Cooling: Air Cooled
Dimensions: 102" x 91" x 98.5"
Weight: 6,420 LBS
Max Table Load: 100 LBS
Options:
Probe
Coolant Thru Spindle
5 Axis
HAAS NEXTGEN CONTROL (TOUCH SCREEN)
15,000 RPM SPINDLE
AUTO DOOR
CHIP AUGER
REMOTE JOG HANDLE (TOUCH SCREEN)
AUTOMATIC COOLANT REFILL SYSTEM
ENCLOSURE EXHAUST SYSTEM
COOLANT TANK OIL SKIMMER
PROGRAMMABLE COOLANT
THROUGH-TOOL AIR BLAST
CHIP TRAY FILTER KIT
WORK TABLE LIGHT
WIFI CAMERA
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
SAFE RUN
MACROS
USB PORT
ETHERNET
1GB MEMORY
EARLY POWER-FAILURE DETECTION MODULE
SURGE PROTECTION
WIRELESS NETWORKING
HAASCONNECT: REMOTE MONITORING
HAASDROP
Coolant Thru Spindle
5 Axis
HAAS NEXTGEN CONTROL (TOUCH SCREEN)
15,000 RPM SPINDLE
AUTO DOOR
CHIP AUGER
REMOTE JOG HANDLE (TOUCH SCREEN)
AUTOMATIC COOLANT REFILL SYSTEM
ENCLOSURE EXHAUST SYSTEM
COOLANT TANK OIL SKIMMER
PROGRAMMABLE COOLANT
THROUGH-TOOL AIR BLAST
CHIP TRAY FILTER KIT
WORK TABLE LIGHT
WIFI CAMERA
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
SAFE RUN
MACROS
USB PORT
ETHERNET
1GB MEMORY
EARLY POWER-FAILURE DETECTION MODULE
SURGE PROTECTION
WIRELESS NETWORKING
HAASCONNECT: REMOTE MONITORING
HAASDROP
