Seller Needs:
$39,960|
2206
|
5

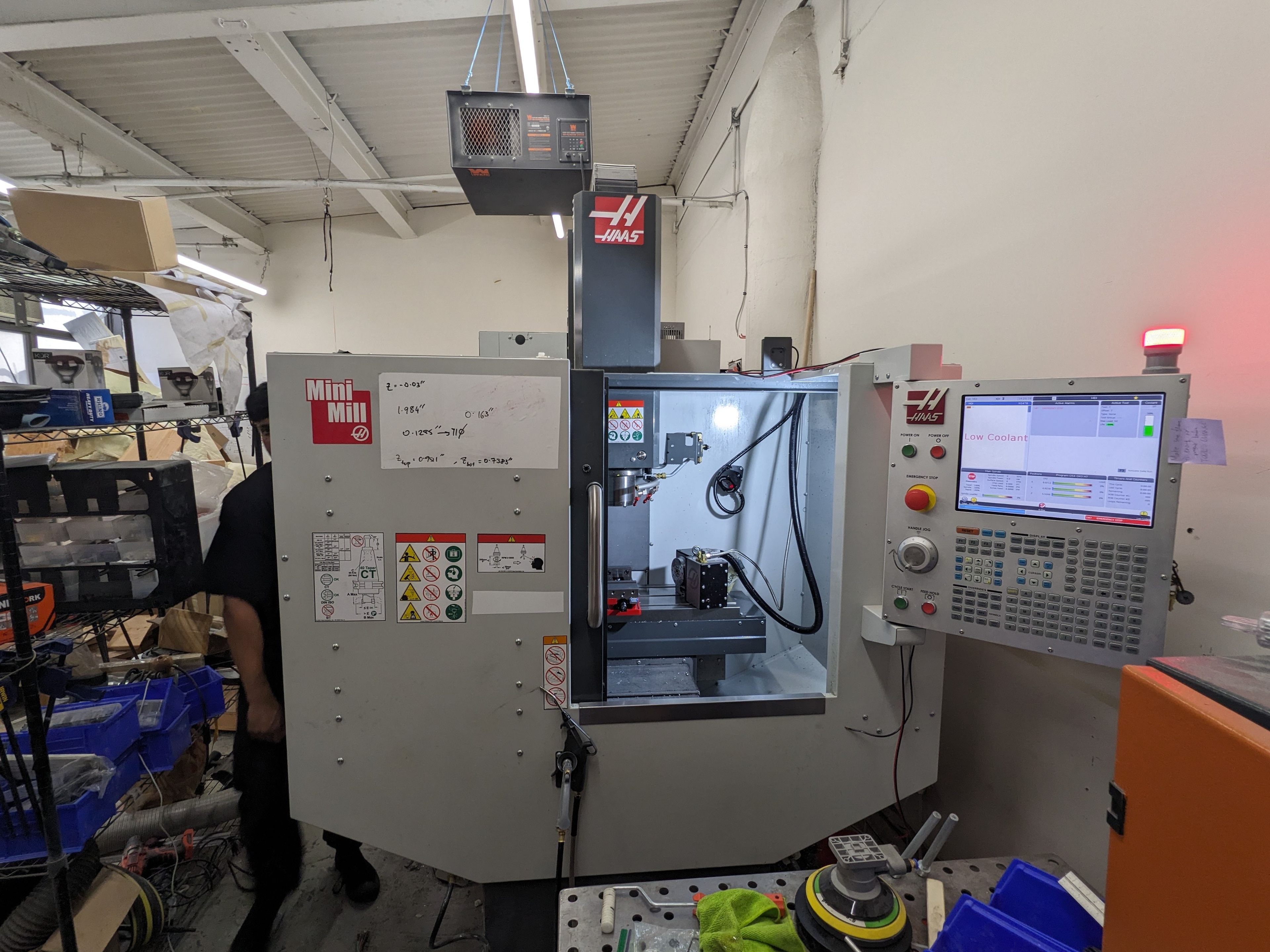

This 2022 HAAS MINI MILL Vertical Machining Center is a useful modern tool. Built by Haas, who is famous for their machine tools due to its high standard of build quality and advanced features. This machine will surprise you ...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 36" x 12"
Max Table Load: 500 LBS
Spindle Motor: 7.50 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Dimensions:
Weight: 4,000 LBS
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size: 36" x 12"
Max Table Load: 500 LBS
Spindle Motor: 7.50 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40
Tool Changer: 10 ATC
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
Max Cutting: 500 ipm
Axis Motors: 2,000 IBF Max Thrust X,Y,Z
Max Tool Dia: 3.5"
Max Tool Weight: 12 lbs
Chip to Chip: 5 Sec
Coolant Capacity: 40 Gal Standard
Air Required 100 PSI
Full Load AMPS 13/25
Input Voltage 220 3 Phase
Dimensions:
Weight: 4,000 LBS
Options:
Haas NGC
Probe
Programmable Coolant
4th Axis Rotary Table
Probe
Programmable Coolant
4th Axis Rotary Table
Seller:
XcvX766
Location:
NY
