Seller Needs:
$22,500|
702
|
5

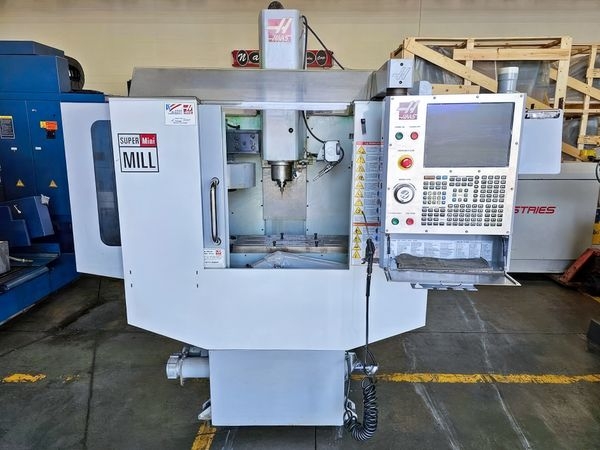

Pre-owned HAAS SUPER MINI MILL 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Minnesota. This ...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Standard Memory 1GB
Coolant Pump Kit
Early Power Detection
Table Size: 28.75" x 12"
Weight: 4,000 LBS
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Standard Memory 1GB
Coolant Pump Kit
Early Power Detection
Table Size: 28.75" x 12"
Weight: 4,000 LBS
Options:
HAAS CNC Control
Programmable Coolant
Rigid Tap
Chip Auger
Programmable Coolant
Rigid Tap
Chip Auger
Seller:
JohnN427
Location:
MN
