Seller Needs:
$20,000|
1079
|
8

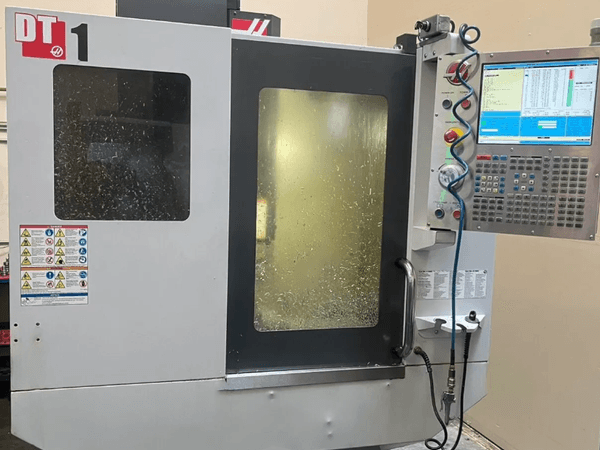

Pre-owned HAAS DT1 2012 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center ...Read More
Seller Needs:
Payment:
Specs:
Table Size: 26" x 15"
Max Table Load: 250 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate: X, Y , Z Axes: 2,400 IPM
Spindle Speed: 12,000 RPM
Spindle Taper: BT30 Taper
Spindle Motor: 15 HP
Tapping Speed: 5000 rpm
Tool Changer: 20 + 1 ATC
Max Torque: 46 ft-lbf
Max Cutting:1200 ipm
Max Tool Diameter: 2"
Max Tool Length: 7"
Chip-to-Chip (avg): 2.4 s
Coolant Capacity: 55 gal
Equipped With:
Haas NextGEN CNC Control
Programmable Coolant
Rigid Tapping
Early Power Failure Detection
Ethernet
Macros
Auto Air Gun
Dimensions: 80" x 100" x 98"
Weight: 5,150 LBS
Max Table Load: 250 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate: X, Y , Z Axes: 2,400 IPM
Spindle Speed: 12,000 RPM
Spindle Taper: BT30 Taper
Spindle Motor: 15 HP
Tapping Speed: 5000 rpm
Tool Changer: 20 + 1 ATC
Max Torque: 46 ft-lbf
Max Cutting:1200 ipm
Max Tool Diameter: 2"
Max Tool Length: 7"
Chip-to-Chip (avg): 2.4 s
Coolant Capacity: 55 gal
Equipped With:
Haas NextGEN CNC Control
Programmable Coolant
Rigid Tapping
Early Power Failure Detection
Ethernet
Macros
Auto Air Gun
Dimensions: 80" x 100" x 98"
Weight: 5,150 LBS
Options:
Next Gen Control
Programmable Coolant
Programmable Coolant
Seller:
KirkS585
Location:
CA
