Seller Needs:
$11,000|
1168
|
6

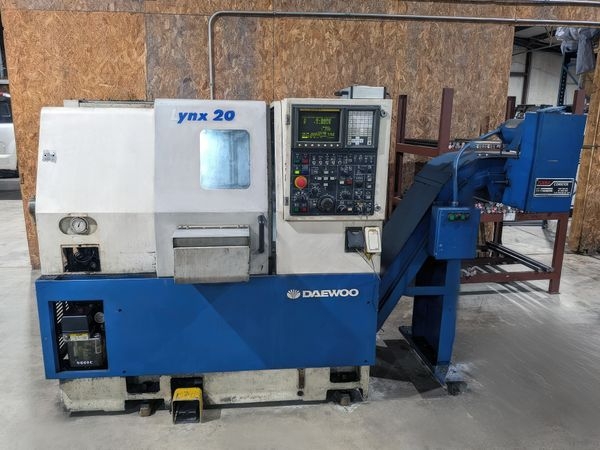

On offer is a well-maintained 1998 DAEWOO LYNX 200A CNC Lathe machine, currently operating in Texas, offering longevity in service and sustaining industry-standard operations. This machine showcases the durable craftsmanship ...Read More
Seller Needs:
Payment:
Specs:
Spindle Speed: 5,000 RPM
Spindle Motor: 10 HP
X Axis Travel: 6.3"
Z Axis Travel: 13"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 11.02"
Max Turning Length: 11.81"
Max Swing: 18.11"
Max Swing Over Saddle: 13.78"
Spindle Nose: A2-5
Hole Thru Spindle: 2.09"
Hole Thru Draw Tube: 1.77"
Turret Index Time: .15 SECOND (1ST SWIVEL)
Tailstock?: No
Spindle Motor: 10 HP
X Axis Travel: 6.3"
Z Axis Travel: 13"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 11.02"
Max Turning Length: 11.81"
Max Swing: 18.11"
Max Swing Over Saddle: 13.78"
Spindle Nose: A2-5
Hole Thru Spindle: 2.09"
Hole Thru Draw Tube: 1.77"
Turret Index Time: .15 SECOND (1ST SWIVEL)
Tailstock?: No
Options:
Fanuc
Chip Conveyor
Tool Presetter
Parts Catcher
Chip Conveyor
Tool Presetter
Parts Catcher
Seller:
StevG361
Location:
TX
