Seller Needs:
$22,500|
3336
|
1

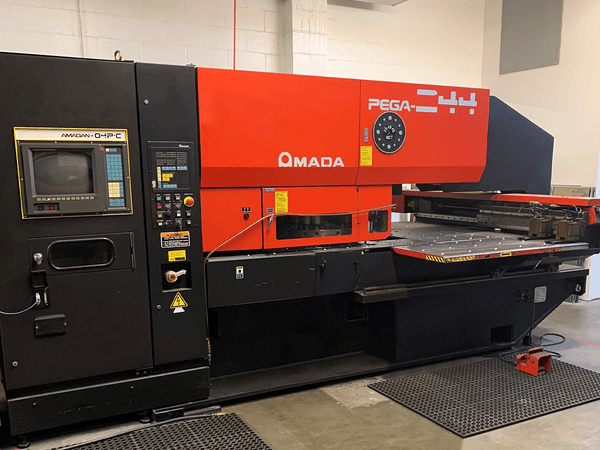

Pre-owned AMADA PEGA 244 1996 Punch Press. This Punch Press has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This AMADA Punch Press is available for a limited time. Ge...Read More
Seller Needs:
Payment:
Specs:
Maximum sheet size: 39.37" X 78.74"
X -Axis: 39.37"
Y-Axis: 41"
Max. linear table speed: 1968" per min.
Punching accuracy: +/-0.004" Hole to Hole
Maximum sheet thickness: 0.250" (mild steel)
Maximum material weight: 110 lb.
Repeatability: +/-0.001"
Press capacity: 22 Tons
Press stroke: 1.575"
Maximum hole diameter: 3.5"
Tool type: Amada Thick Turret
Turret rotation speed: 30 RPM
Turret capacity: 24 stations
Dimensions: 157" x 90" x 77"
Weight: 18,750
X -Axis: 39.37"
Y-Axis: 41"
Max. linear table speed: 1968" per min.
Punching accuracy: +/-0.004" Hole to Hole
Maximum sheet thickness: 0.250" (mild steel)
Maximum material weight: 110 lb.
Repeatability: +/-0.001"
Press capacity: 22 Tons
Press stroke: 1.575"
Maximum hole diameter: 3.5"
Tool type: Amada Thick Turret
Turret rotation speed: 30 RPM
Turret capacity: 24 stations
Dimensions: 157" x 90" x 77"
Weight: 18,750
Options:
Amada Fanuc-P
MDI, Floppy Disk Drive, RS-232
Automatic, MDI & Manual
MDI, Floppy Disk Drive, RS-232
Automatic, MDI & Manual
Seller:
RyanR736
Location:
Wa
