Used Haas VF3
The Haas VF3 is a 40-taper vertical machining center with a 40 x 20 x 25 travel. The base model comes with a 30 hp vector drive and a spindle speed of 8,100 rpm. (The VF3SS has 12,000 rpm max.) The standard VF3 Haas has a 20-station carousel tool change, 1,000 inches per minute rapids and 1 MB program memory. Some of the specialties of the VF3 include a 4th axis, rigid tapping, programmable coolant, remote jog handle, chip auger and more options. Consult one of our used Haas VF3 experts to help you identify the right Haas CNC mill for your business productions.

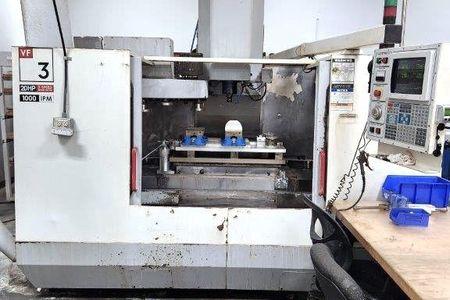

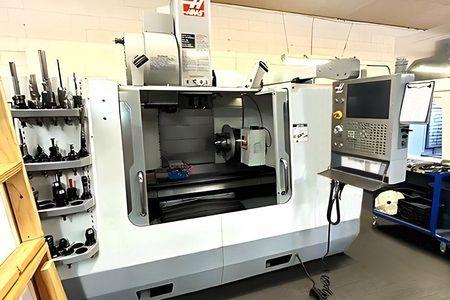

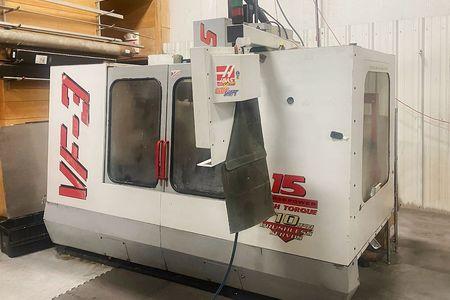

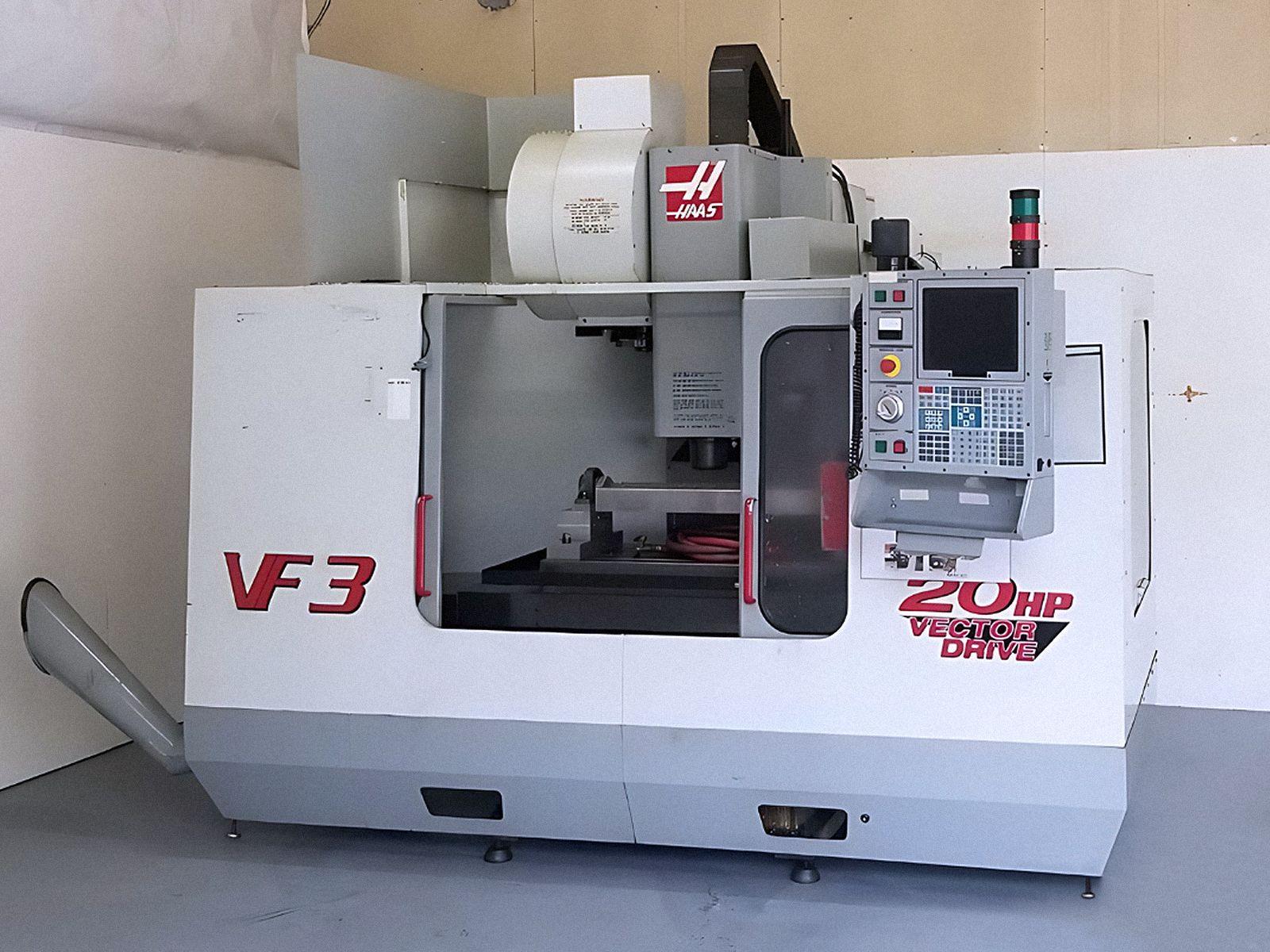

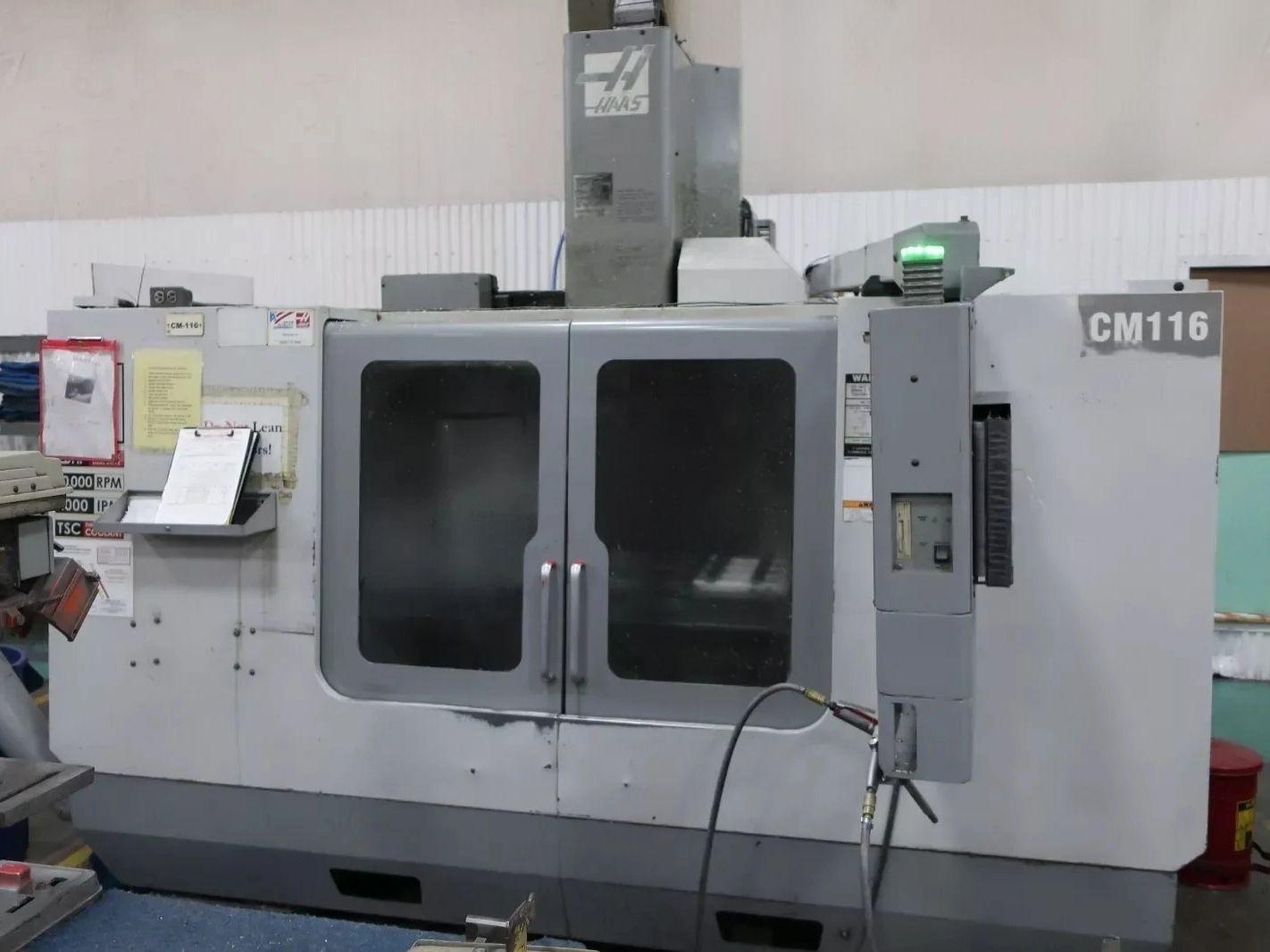

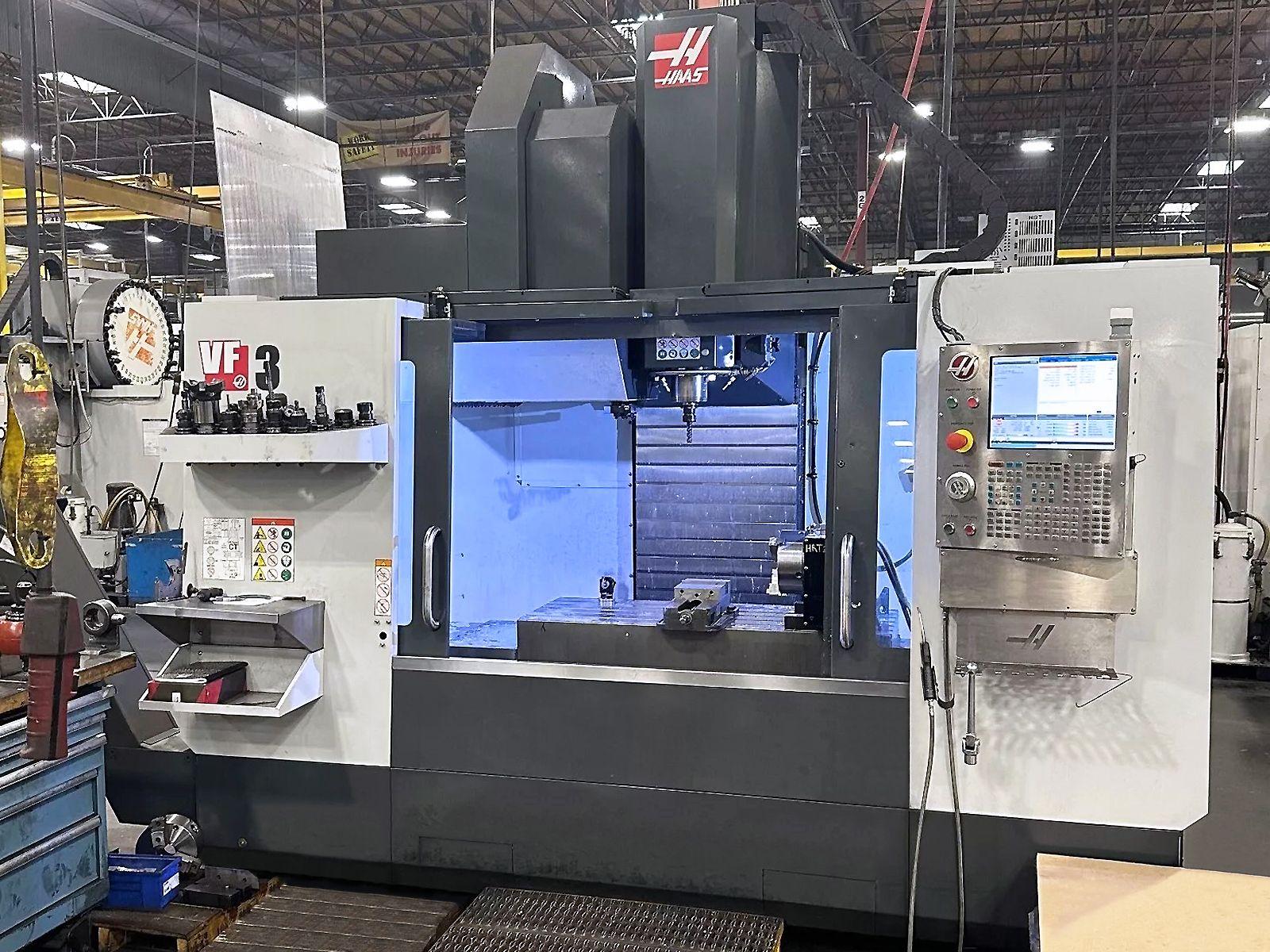

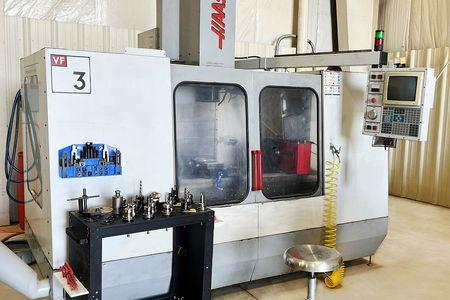

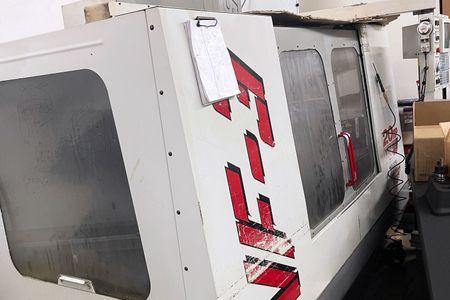

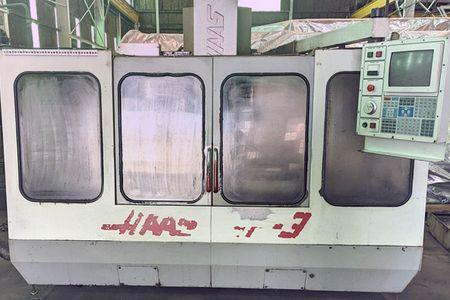

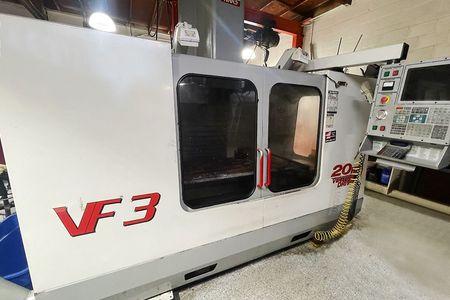

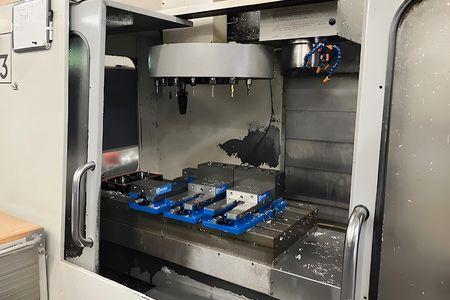

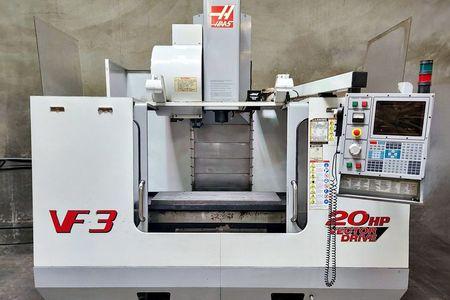

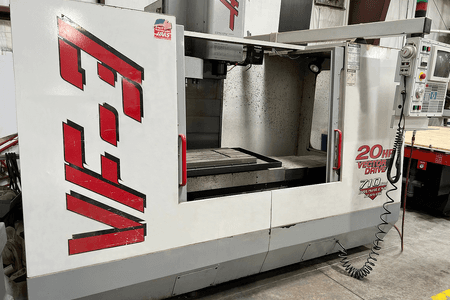

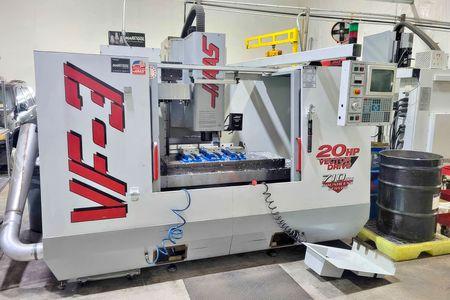

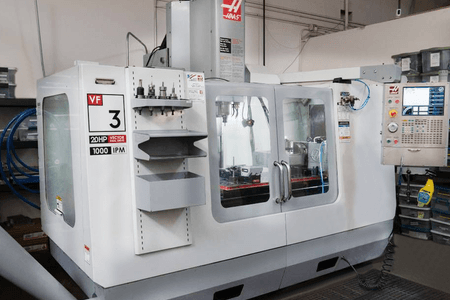

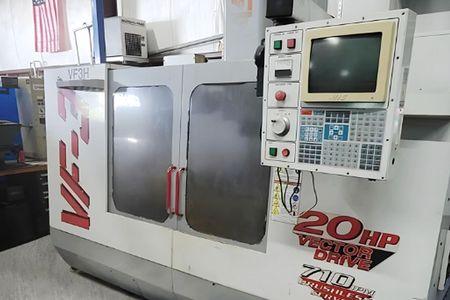

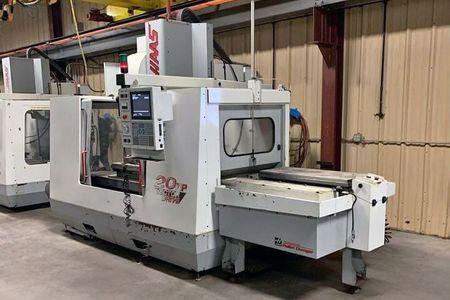

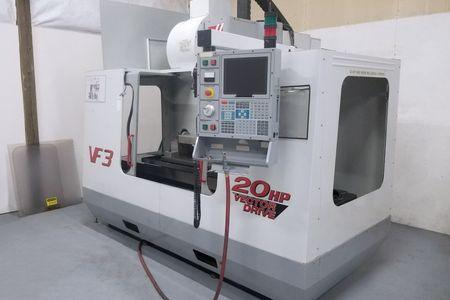

Haas VF3 For Sale
Haas VF3 CNC Controler
The Haas control makes the VMC (Vertical Machining Centers) easy to operate. The Haas VF3 controls come with one-button features to make common multi-step functions fast. For example, a tool offset can be reduced to the push of one button. Other common functions of the one-button function include setting work offsets, homing the machine and the selection of the next tool during setup. On a VF3 Haas, the jog-handle can be used in other modes to cursor through the program for overriding spindle speeds, faster editing, or to scan through offsets, parameters, etc. When buying a used VF3 Haas, ask if the controls have been updated. Youll want to consider what options you have to update that particular used Hass VF3 for sale.

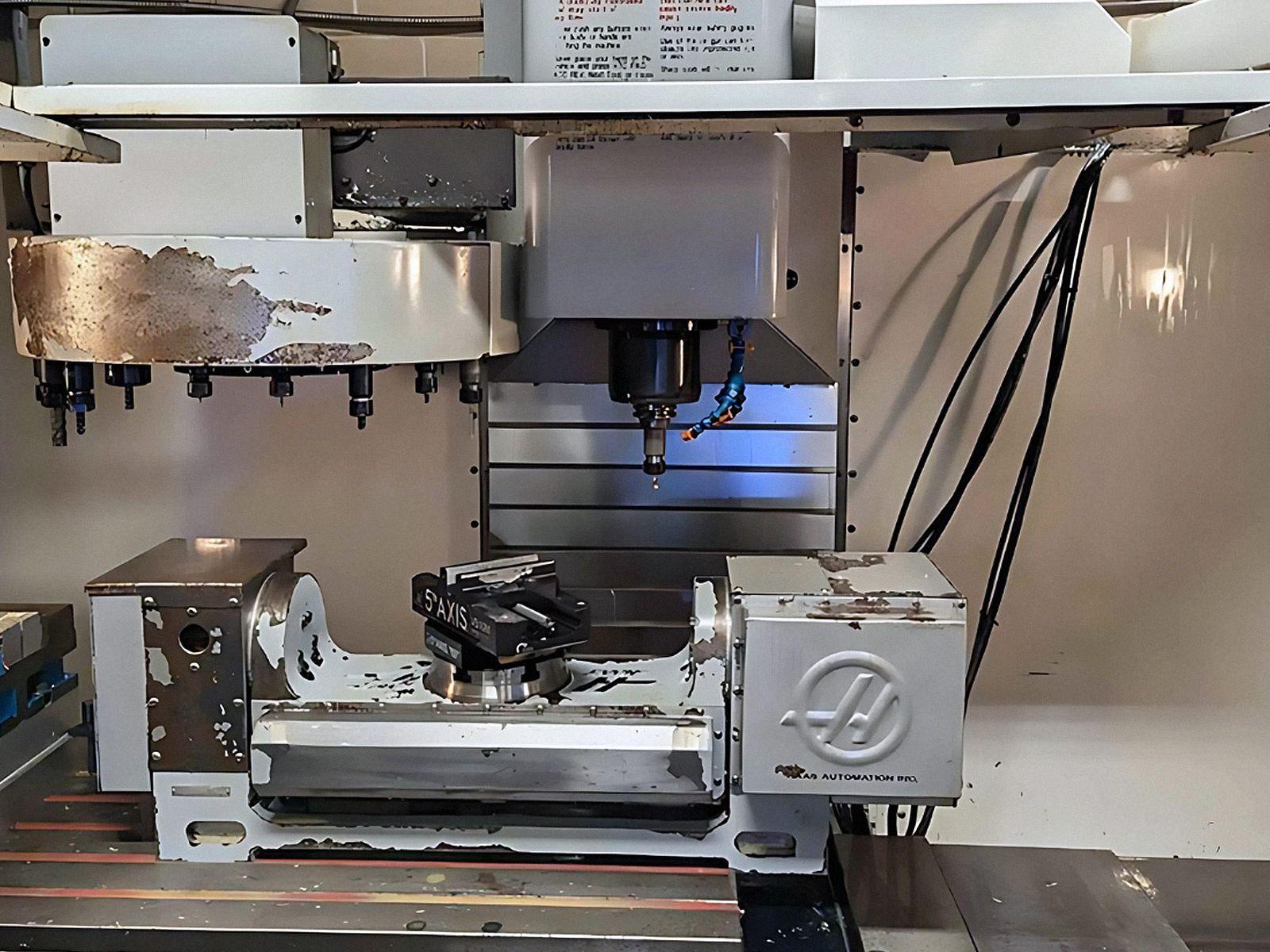

DWO/TCP on a VF3 Haas
When looking for a VF-3 Haas CNC, consider asking if the DWO/TCP option is included. This stands for Dynamic Work Offsets and Tool Center Point Control. Its a software feature designed by Haas to increase productivity and reduce setup times. It makes setting up easy by allowing an operator to place the part and fixture anywhere on the machines table or platter. The machine will find it no matter the location that was programmed by the CAM system. DWO and TCPC determine the difference between the centers of rotation which are programmed in the CAM system and the centers of rotation inside the machine and applies the appropriate offsets. This saves money by eliminating costly work holding, like self-centering fixtures and the regeneration of programs by CAM systems.
Haas VF-3 Models & Specs
Here are the general specifications of the Haas VF3. Keep in mind that a Haas VF3 for sale that is older may vary in rapids (cutting speed), HP, thrust, and torque.
| Model | Taper | Axis | Spindle | Tool Capacity | Travels |
|---|---|---|---|---|---|
| Haas VF3 | 40 | 3 | 8,100 RPM | 20 | 40.0" x 20.0" x 25.0" |
| Haas VF3SS | 40 | 3 | 12,000 RPM | 30+1 | 40.0" x 20.0" x 25.0" |
| Haas VF-3YT | 40 | 3 | 8,100 RPM | 20 | 40.0" x 26.0" x 25.0" |
| Haas VF-3SSYT | 40 | 3 | 12,000 RPM | 30+1 | 40.0" x 26.0" x 25.0" |
| Haas VF-3YT/50 | 50 | 3 | 7,500 RPM | 30+1 | 40.0" x 26.0" x 25.0" |
Haas VF3 Cutting Demo
What is Haas VF3?
The Haas VF3 is a vertical machining center (VMC) known for its reliability and performance. It operates using a spindle oriented vertically, suitable for precision operations in various industries including automotive, aerospace, and electronics. The machine provides impressive speed and accuracy, making it ideal for both small batch and high volume production runs.
Haas VF3 Specifications and Capacity
| Specification | Inches | MM |
|---|---|---|
| XYZ Travels | 40 x 20 x 25 in | 1016 x 508 x 635 mm |
| Spindle Speed | 8100 RPM | |
| Tool Capacity | 20 |
Haas VF3 Upgrades and Features
- Renishaw probing
- High-speed machining
- Through-spindle coolant
- Expanded tool capacity
Haas VF3 Estimated New Price
- Base Price: $55,000
- With Some Options: $70,000
- Loaded with Options: $90,000
Haas VF-3 History
The Haas VF-3 has been a staple in the machining industry since its release. It has undergone numerous upgrades over the years to improve its accuracy, speed, and user-friendliness. It remains one of the top choices for manufacturers worldwide.
Haas VF3 Industries
The Haas VF 3 is widely used in various industries including automotive, aerospace, electronics, and precision manufacturing. Its versatility makes it ideal for a variety of applications, from prototyping to full-scale production.
Haas VF3 Pros
- High precision
- Reliability
- Flexible usage
- Cost-effective
Haas VF3 Cons
- May require frequent maintenance
- Initial cost may be high for small operations
Haas VF3 Competitors
- Mazak VCN-530C
- Okuma Genos 560V
- DMG Mori DMC 1035 V
Haas VF3 Technical Support
Factory Support Information:
Haas Automation, Inc.
2800 Sturgis Rd, Oxnard, CA 93030
Phone: +1 (805) 278-1800
Haas VF3 3 Most Recent Reviews
"I’ve been using the Haas VF3 for about two years now. It's incredibly reliable and offers excellent precision. The speed and ease of use are unmatched. My only issue is the maintenance, which can get frequent."
★★★★★
Reviewed by: JeffM913 on 07/10/2023
"The Haas VF3 is awesome for the price. It handles everything we throw at it, but sometimes the initial setup takes longer than we'd like."
★★★★☆
Reviewed by: JoeT029 on 05/22/2023
"We have a few Haas VF3 CNC Millas and they are great machine overall. Tech support is great, parts are fairly priced and they are quick to be on site when we need them."
★★★★★
Reviewed by: BillK773 on 03/15/2023
