Miyano CNC Machines

Year: Newest - Oldest

Miyano was founded in Japan in 1929 by Toshimori Miyano. Their first product was industrial precision files but developed Japan's first automatic cam-operated lathe in 1948. Since then, the company released many models of high-quality precision manufacturing equipment with high accuracy, durability and rigidity. In 2011, Miyano merged with fellow japanese manufacturing company Citizen Machinery Co., Ltd., and are now known as Citizen Machinery Miyano Co., Ltd. Miyano makes high-quality fixed headstock CNC automatic lathes and have a reputation for accuracy and durability. Miyano CNC machines are commonly used in producing automotive components, construction machines and hydraulic equipment. Call us at (844) 262-6789 for more information on Miyano CNC automatic lathes.

MIYANO

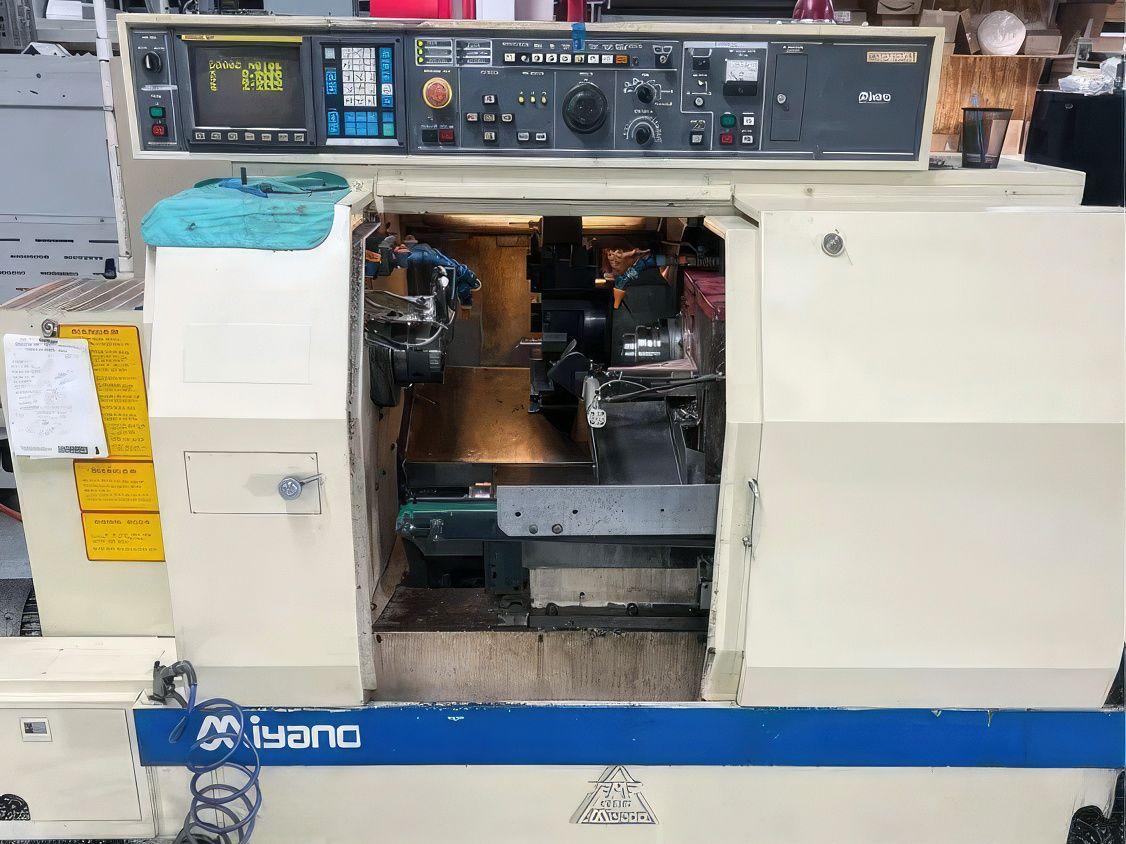

Used Miyano CNC Machine Tools

Miyano CNC machine tools are built to last, and are a good buy even when used. The primary defining features of a Miyano unit are their high-rigidity spindles, hand-scraped slideways, and platform-style machine bed construction. Used miyano cnc machine citizen for sale

Hand-scraped slideways

Miyano machines use finely-crafted slideways provide surface contact over a wide area that allows powerful cutting for hard turning operations while extending the life of the cutting tools. All slideways are hand-finished, with quality guaranteed by multiple inspecting technicians per part.

Maintenance for Miyano slideways is a breeze compared to those from competitors. Instead of replacing the guide set like in other products, all you need to do in a Miyano unit is just adjust the gibs. Some customers have been able to retain the same high accuracy in their unit for over 10 years by simply by adjusting the gibs themselves.

Rigid platform

CNC machine tool platforms are flat plates used for inspecting and measuring components. Used CNC machines with platforms sometimes suffer from deformation and inking due to age and wear.

The underside of Miyano platforms are ribbed, which promote stability and flatness over a longer period of time. Spindles and turrets that are mounted on this uniform surface minimizes heat distortion of the unit's mounting faces.

Miyano CNC Machine Tool Models

Miyano Lathe Model Type Turret ST number Rotary Tool Size
BNC42 Bar Work - 1 spindle 1 turret 8 16Nm

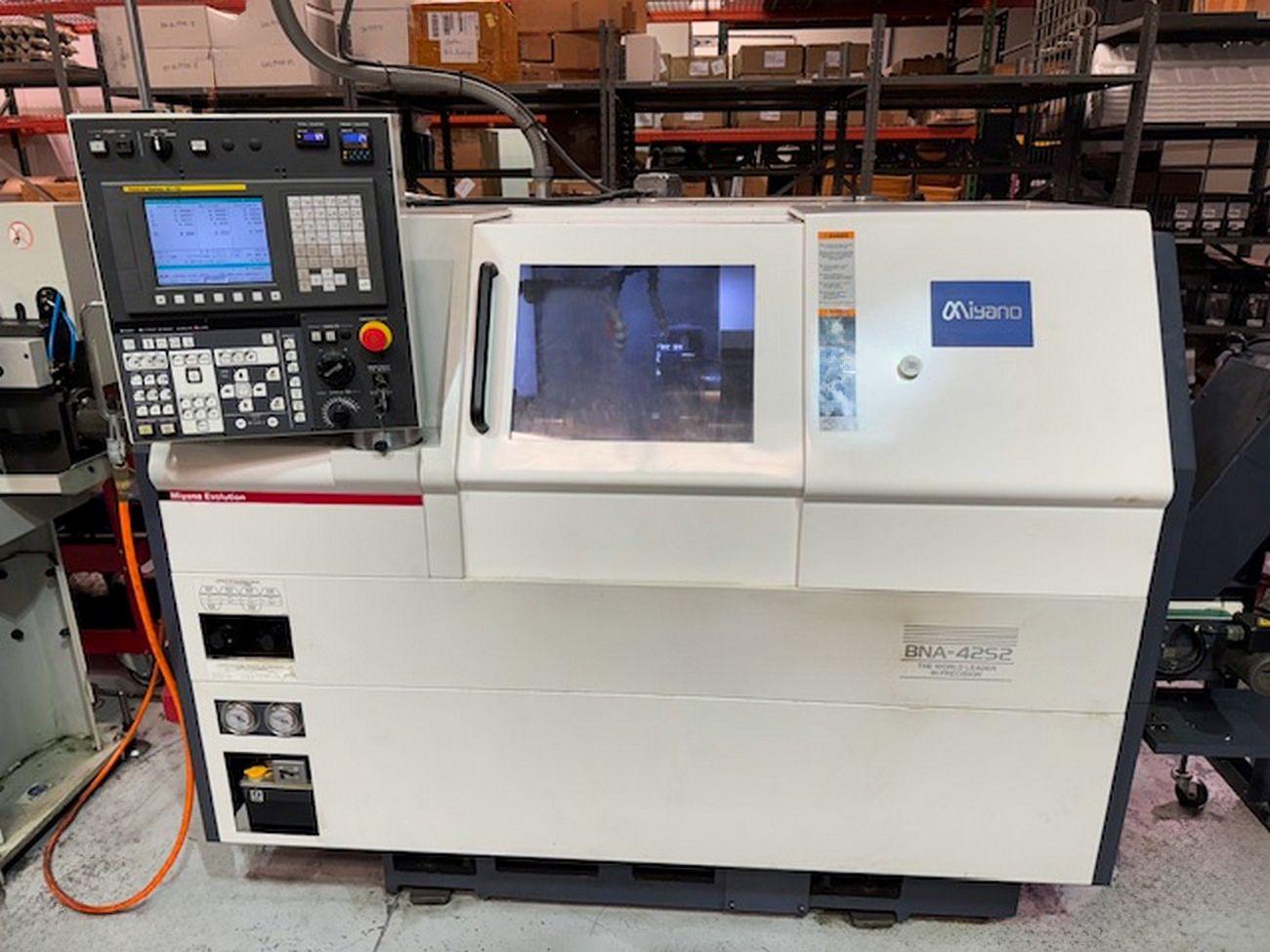

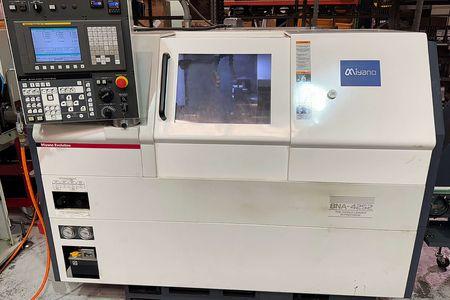

BNA42S Bar Work - 2 spindles 1 turret 8 16Nm
BNA42SY Bar Work - 2 spindles 1 turret 12 16Nm
BNA42MSY Bar Work - 2 spindles 1 turret 8 16Nm
BND51 Bar Work - 2 spindles 1 turret 12 20Nm

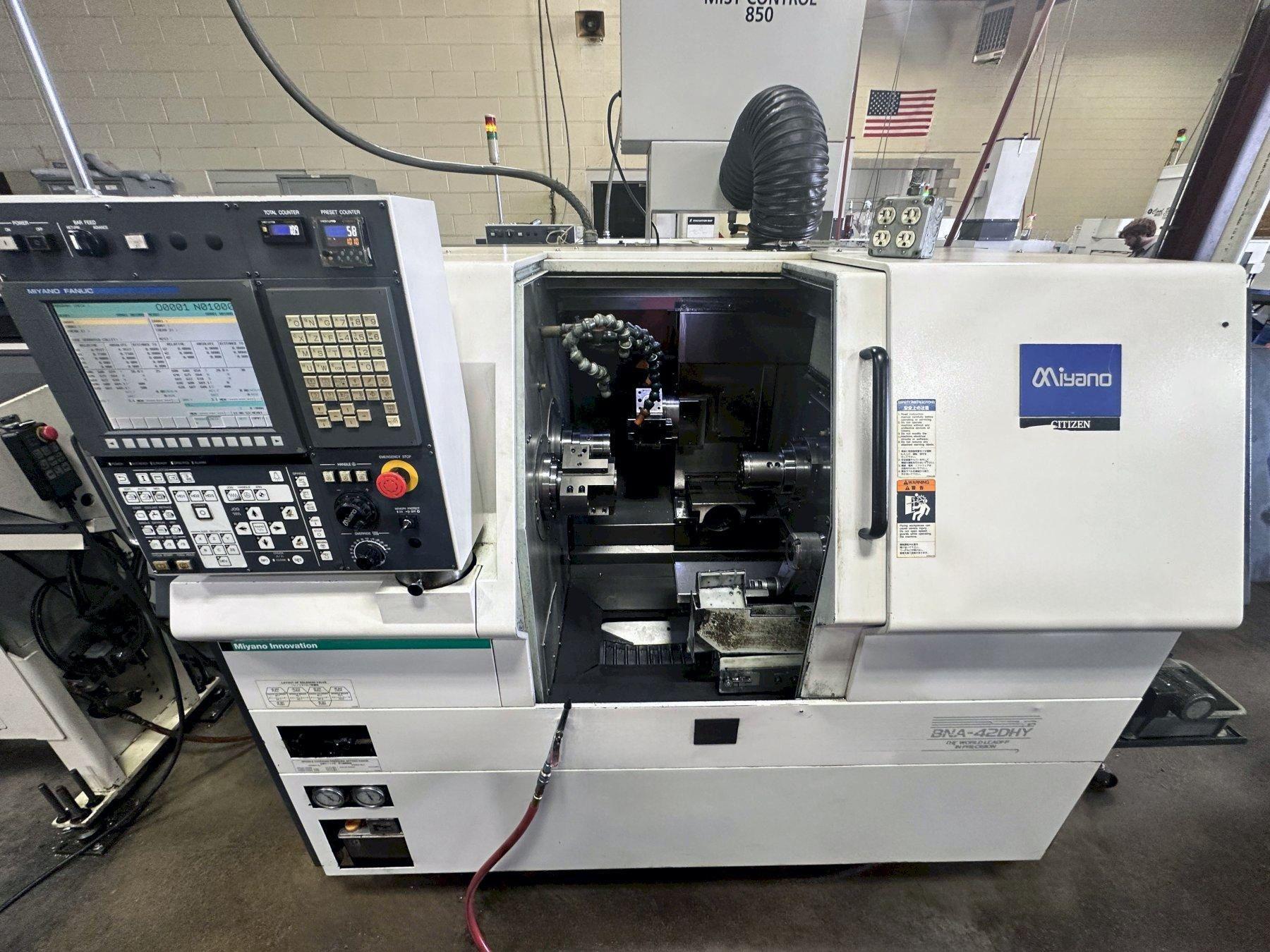

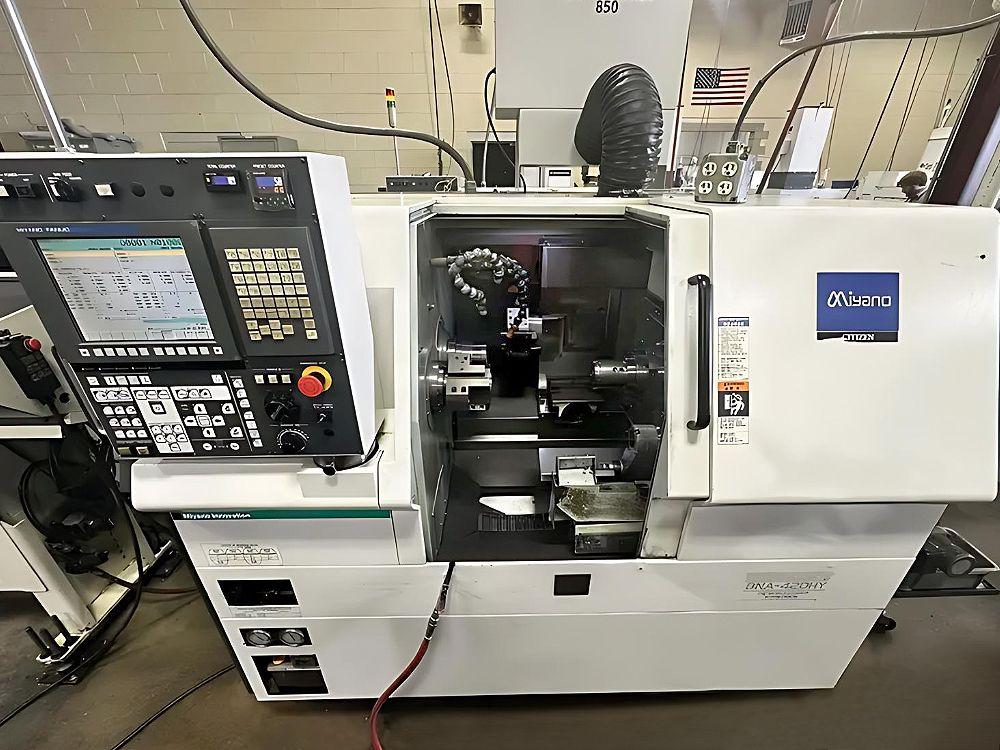

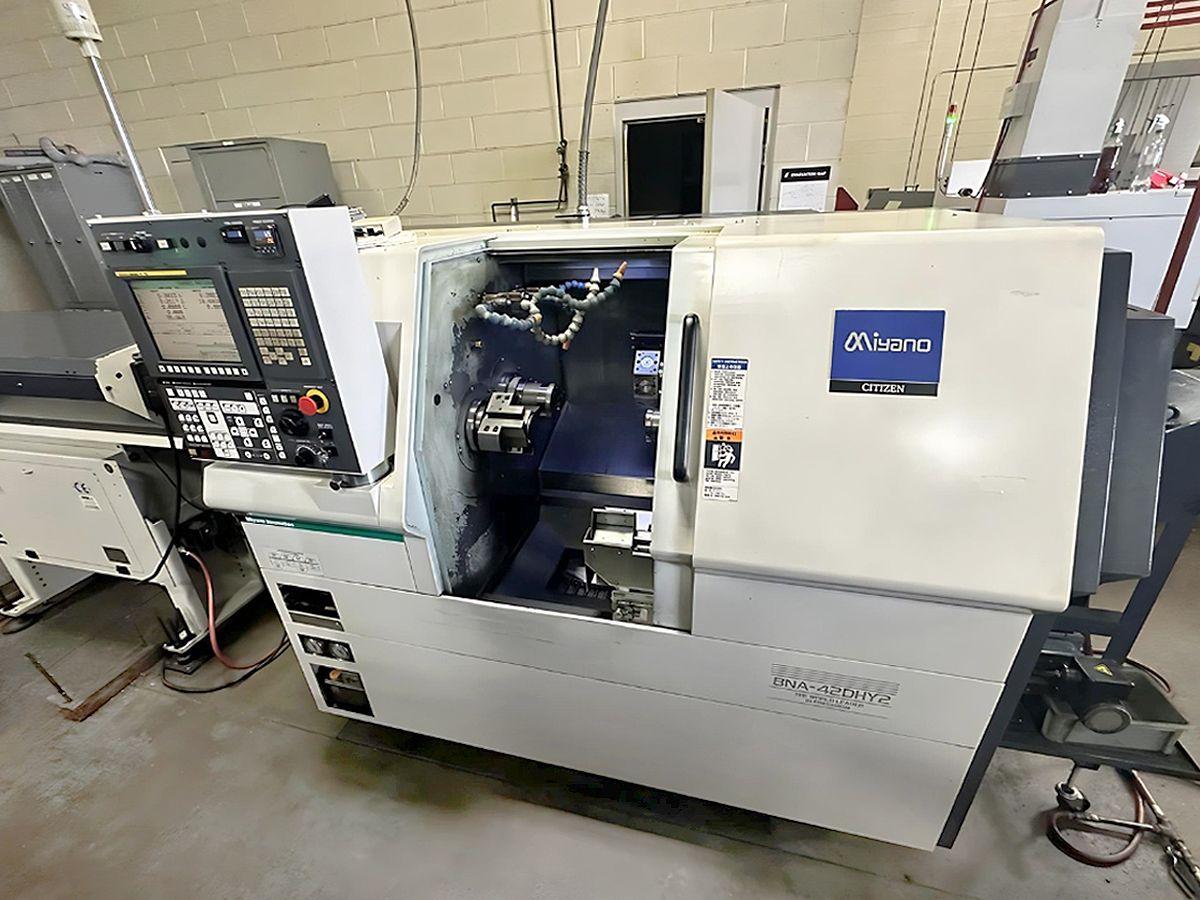

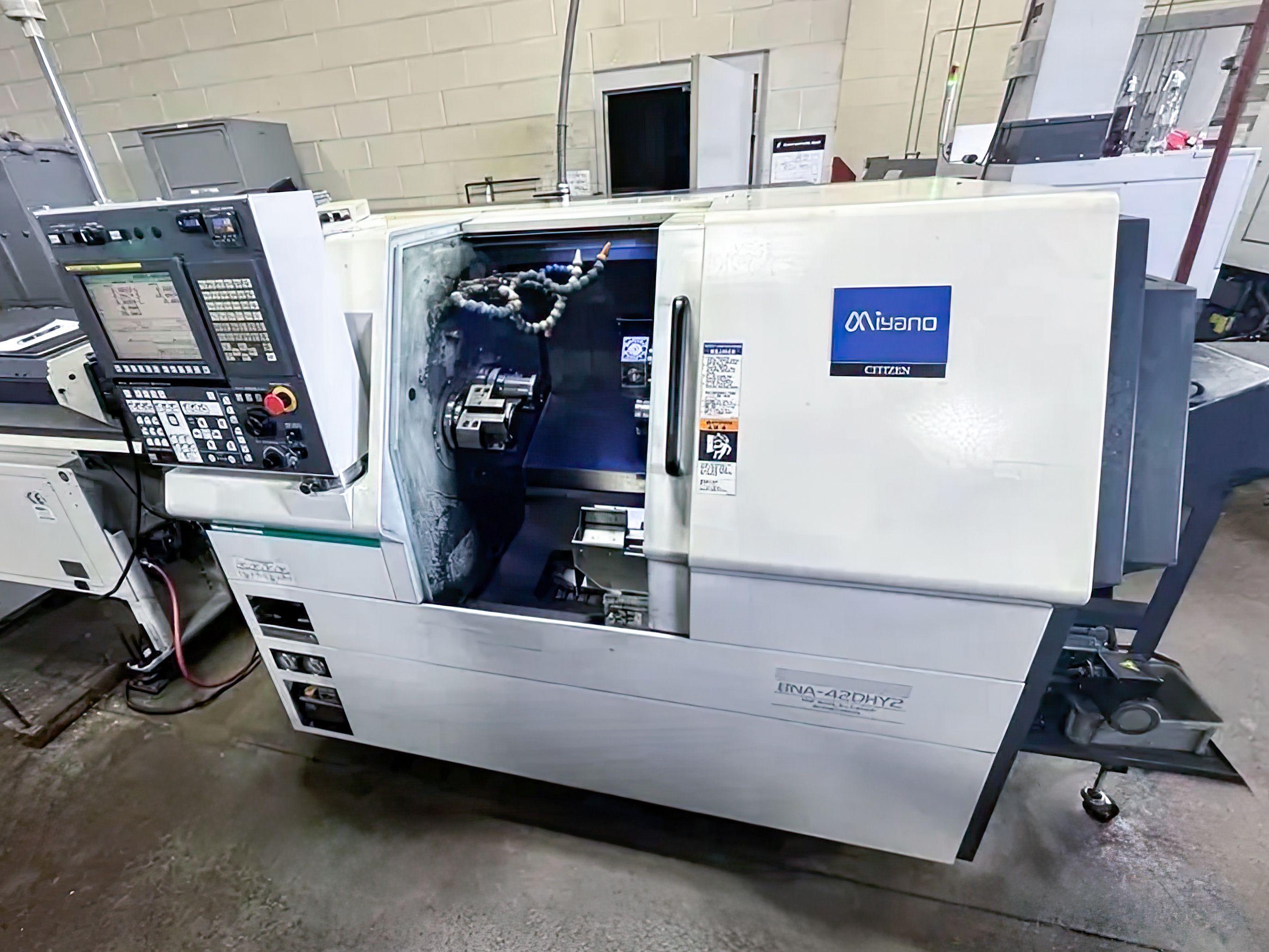

BNA42DHY Bar Work - 2 spindles 2 turrets 8+6 8Nm
BNA42GTY Bar Work - 2 spindles 2 turrets 8+gang tool post 8Nm
BNA42GTY Bar Work - 2 spindles 2 turrets 12+6 8Nm

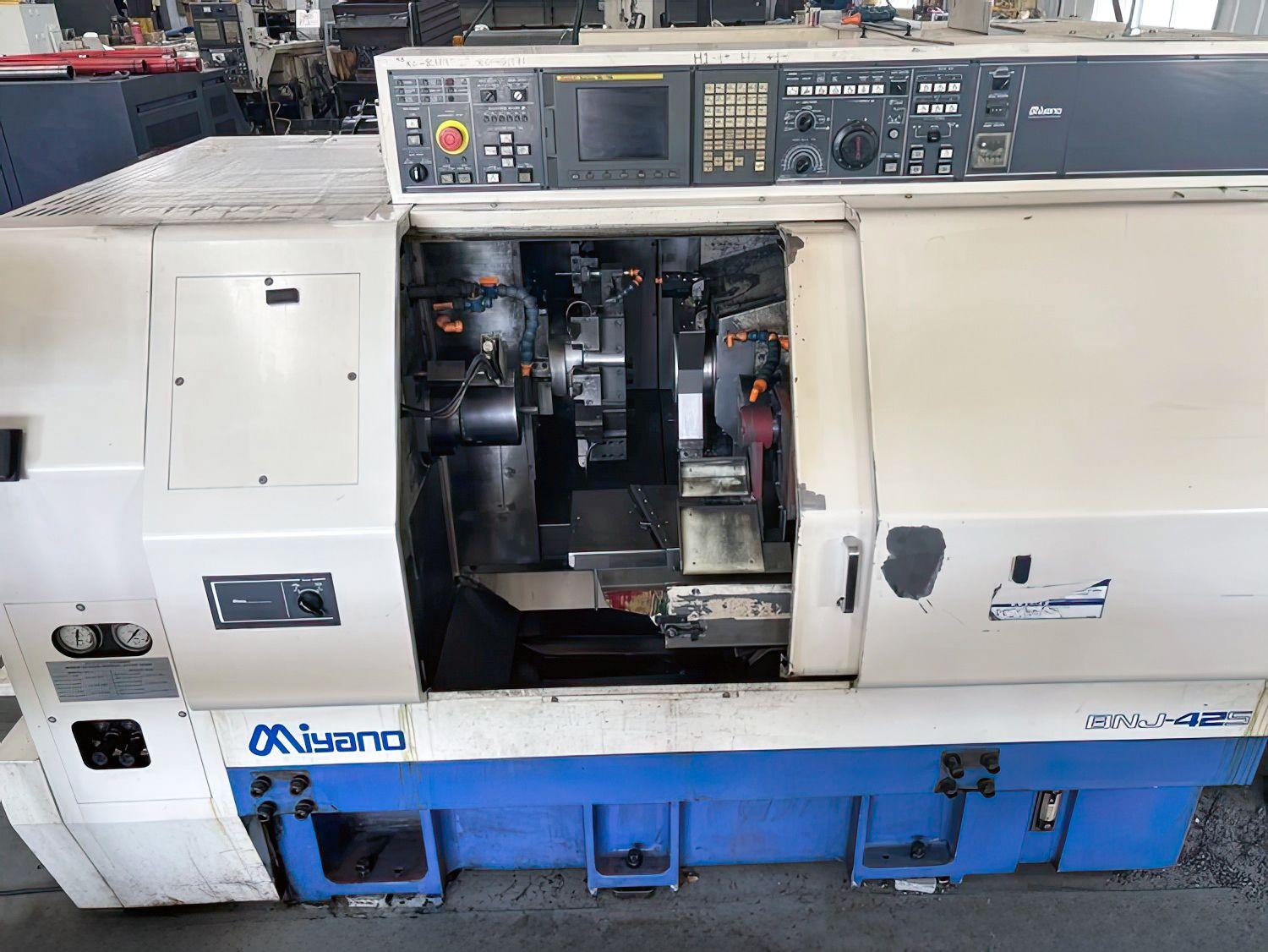

BNJ42/51 Bar Work - 2 spindles 2 turrets 12+6 25Nm
BNE42/51 Bar Work - 2 spindles 2 turrets 12+12 20Nm
BNE51MSY Bar Work - 2 spindles 2 turrets 12+12 20Nm
ABX51/64SYY Bar Work - 2 spindles 2 turrets 12+12 40Nm
ABX51/64THY Bar Work - 2 spindles 3 turret 12+12+12 30Nm
LX06/08E Bar Work - 1 spindles 1 turret 8 NA
LX08C Turning machine - 1 spindle 1 turrest 10 NA
LZ01 Turning machine - 1 spindle 1 turrest 12 20Nm
