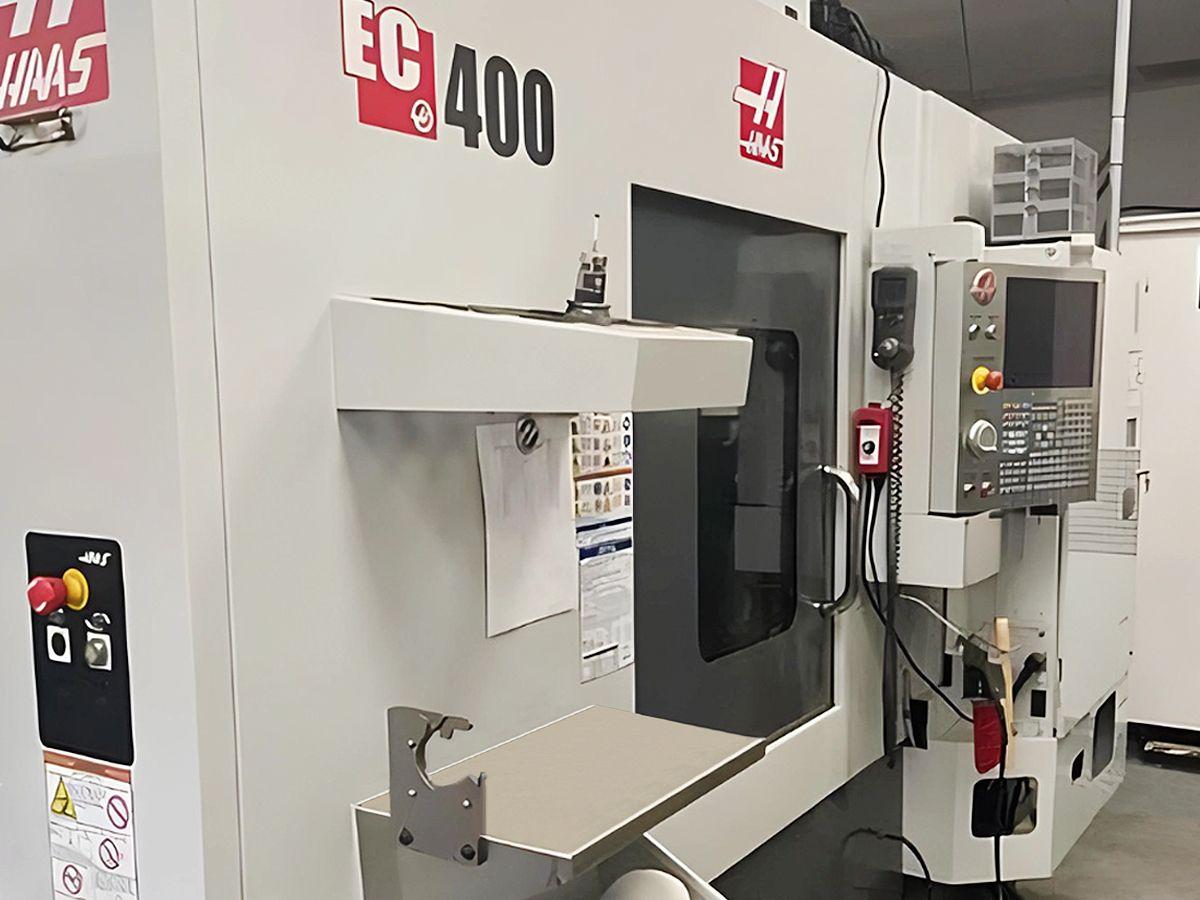

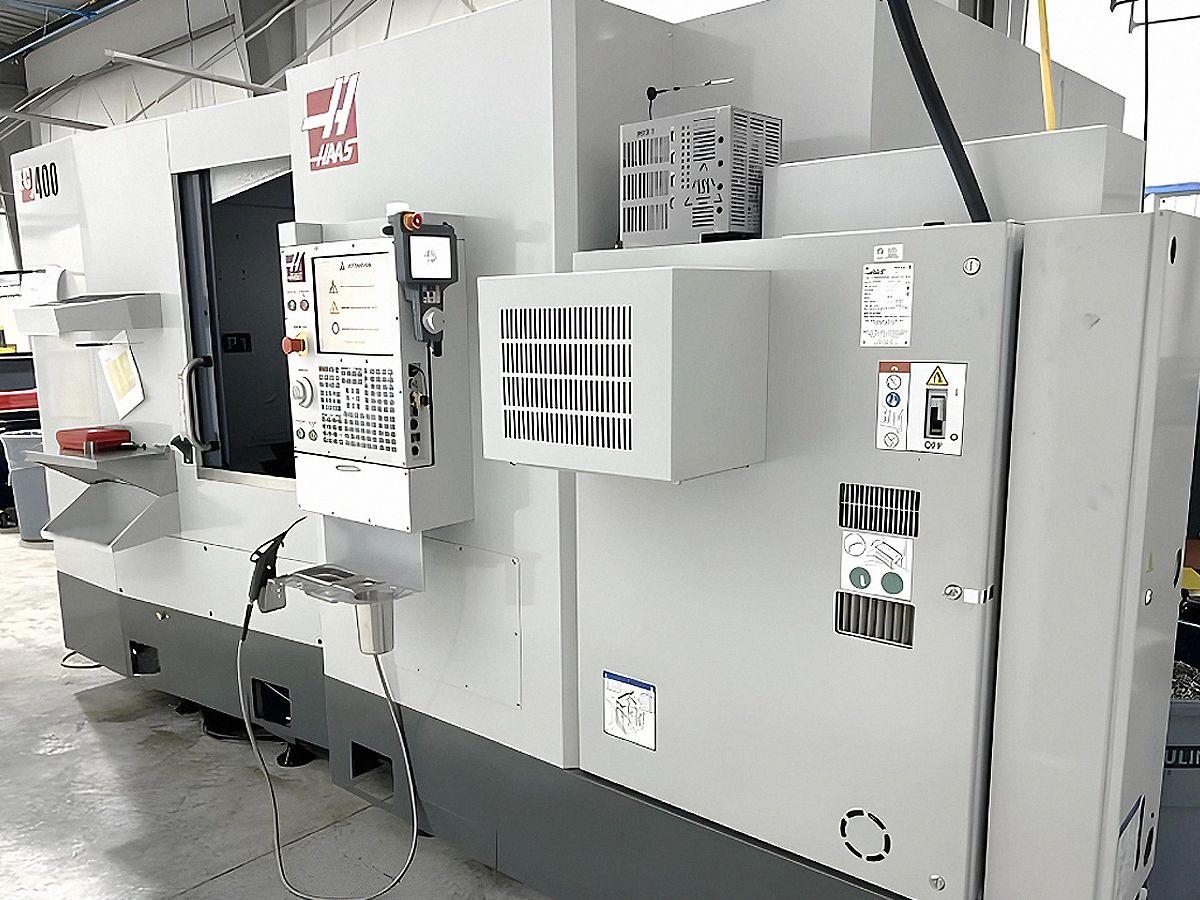

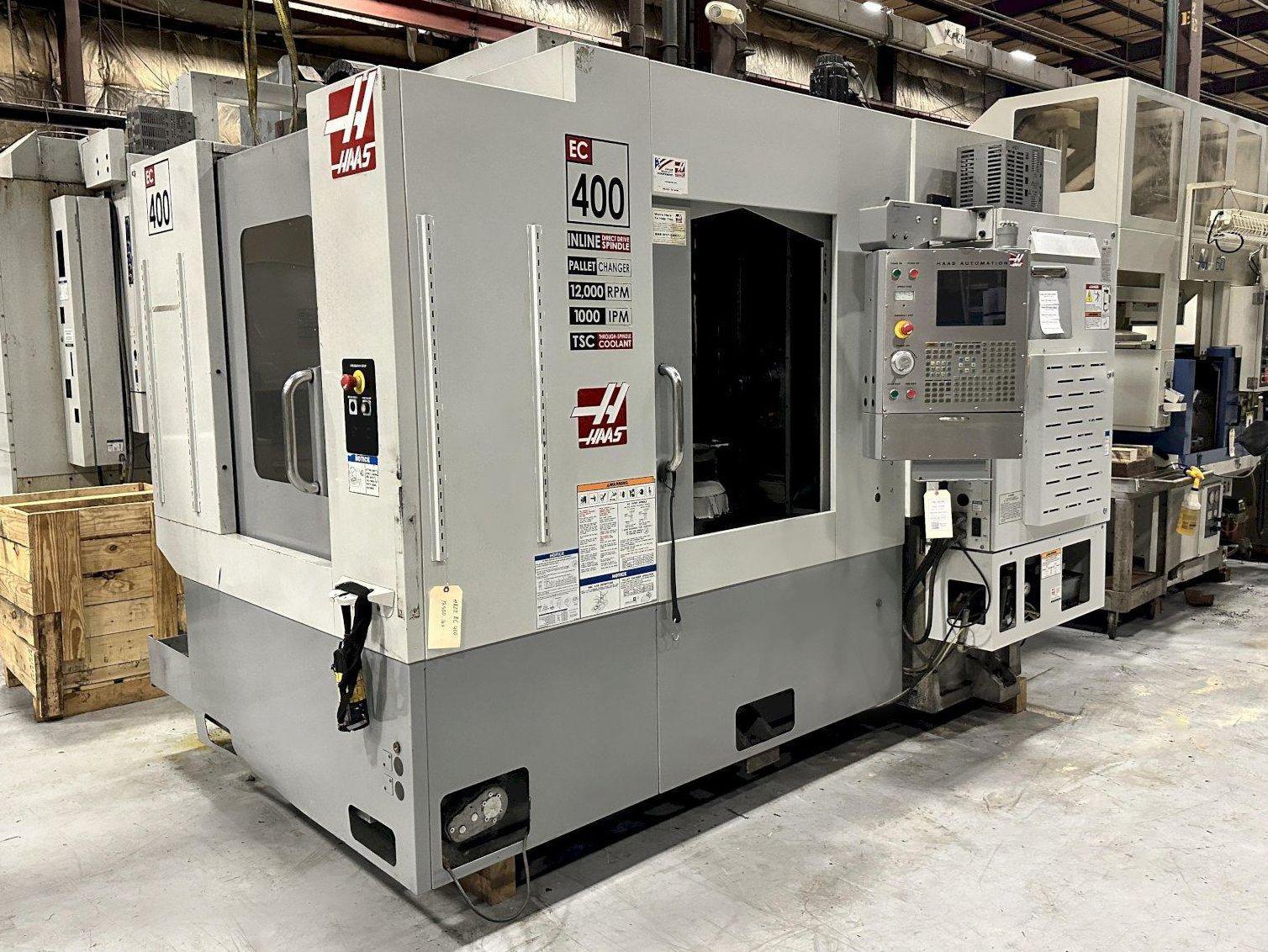

Haas EC400
Haas has been making the EC400 series since the early 2000s. These are popular horizontal machining centers (HMC) with a number of high-productivity standard features. The Haas EC-400 is a T-base HMC with a work cube of 20 x 20 x 20, dual 15.8 pallets and 1,000-pound load capacity. The standard version has an incremental (45 degree) indexing, a large volume coolant system, and triple-auger chip removal.
%2F1726110633890-url-pix.jpg&w=3840&q=75)
Used Haas EC400 For Sale
HMC Haas EC400
The Haas EC400 direct-drive motor is coupled with the spindle system and produces good surface finishes and thermal stability. You will find 40 taper, 8,000 rpm machines are powered by a 20 hp vector dual drive system and a 40 + 1 side-mount tool changer with 1,000 IPM on standard EC400 HMCs. The EC400PP model comes standard with 12,000 rpm spindles and a 70 +1 side-mount tool changer.
Haas EC400 Selection Overview
When selecting your Haas EC400, youll want to take into consideration both your current and future needs for size, speed, versatility, and precision. If you need to make more complex parts, the EC400PP might be a better option, since it comes with a larger side-mount tool changer and higher spindle speed maximum.and VF650TR.
| Travels | Size |
|---|---|
| X Axis | 22.0 in |
| Y Axis | 25.0 in |
| Z Axis | 22.0 in |
Spindle | Specification |
|---|---|
| Max Rating | 30.0 hp |
| Max Speed | 8100 rpm |
| Max Torque | 90 ft-lbf @ 2000 rpm |
| Drive System | Inline Direct-Drive |
| Taper | CT or BT 40 |
| Bearing Lubrication | Air / Oil Injection |
| Cooling | Air Cooled |
Haas EC400 Estimated New Price Range
- Base Price: $150,000
- With Some Options: $180,000
- Loaded with Options: $220,000
Haas EC400 History
Since its introduction, the Haas EC400 has evolved with numerous technological advancements. It has maintained its position as a reliable and efficient machine for high-volume production settings.
Haas EC400 Industries
The Haas EC400 is commonly used in aerospace, automotive, and manufacturing industries for tasks requiring high precision and efficiency.
Haas EC400 Pros
- High precision and accuracy
- Dual-pallet changer for continuous operation
- Versatile for various industries
Cons
- High initial cost
- Requires skilled operators
Competitors
- Mazak HCN Series
- Okuma MB-4000H
- Mori Seiki NHX Series
Haas EC400 Technical Support
- Factory Support: Phone: 1-800-331-6746, Address: 2800 Sturgis Rd, Oxnard, CA 93030, USA
- Local Support: Check Haas Factory Outlet near your location.
