Seller Needs:
$310,000|
1295
|
2

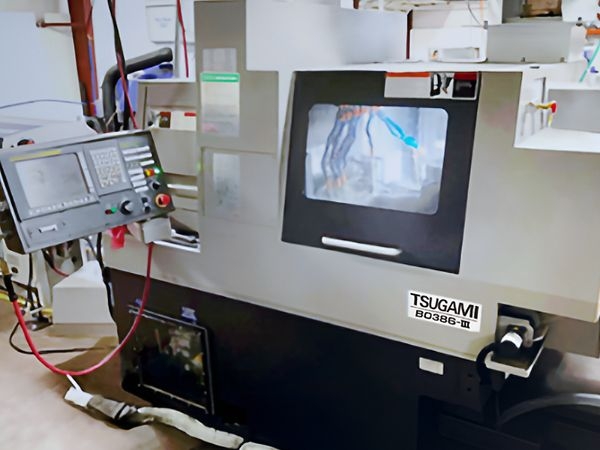

Pre-owned TSUGAMI B0386III 2022 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 32i Model B control. This CNC Machine is currently located in USA. This TSUGAMI CNC Lathe is available for a limi...Read More
Seller Needs:
Payment:
Specs:
Maximum Bar Stock 38 mm / 1.5
# Axes 6
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 320 mm / 12.6”
70 mm / 2.75”
# Tool Positions (std / max) 29 / 42
# Live Tool Positions (std / max) 15 / 26
Control FANUC 32i-B
Main Spindle Speed 200 – 6,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 6,000 rpm
Main Spindle Motor 7.5 / 11 kW
Dimensions: 103.5" x 50.4" x 77.5"
Weight: 8,818 LBS
# Axes 6
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 320 mm / 12.6”
70 mm / 2.75”
# Tool Positions (std / max) 29 / 42
# Live Tool Positions (std / max) 15 / 26
Control FANUC 32i-B
Main Spindle Speed 200 – 6,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 6,000 rpm
Main Spindle Motor 7.5 / 11 kW
Dimensions: 103.5" x 50.4" x 77.5"
Weight: 8,818 LBS
Options:
Fanuc 32i Model B
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
MP 2000 PSI Coolant System
Rear Work Collection Through Sub Spindle
Oscillation Cutting Function (X1/Z1 axes)
IMG Deep Drill Holder T11
Fire Trace Fire Suppression
Pusher Extension
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
MP 2000 PSI Coolant System
Rear Work Collection Through Sub Spindle
Oscillation Cutting Function (X1/Z1 axes)
IMG Deep Drill Holder T11
Fire Trace Fire Suppression
Pusher Extension
Seller:
LogaE101
Location:
AR
