Seller Needs:
$99,000|
1554
|
2

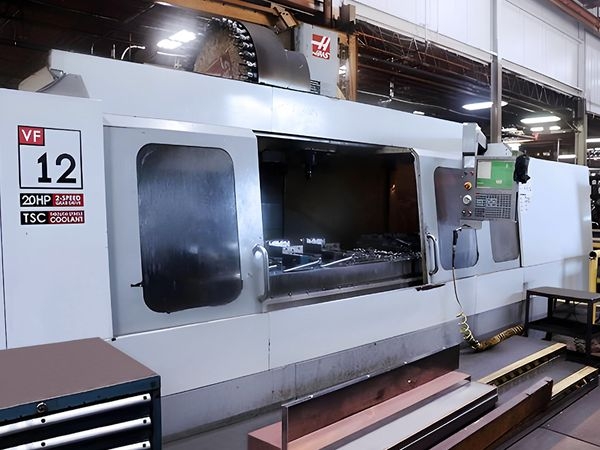

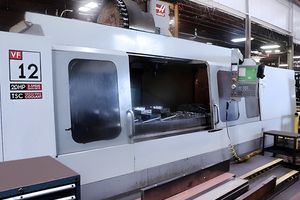

This 2009 HAAS VF12 Vertical Machining Center has been a trustworthy part of our operations for many years. It is currently in good condition and in continued use, acting as an important player in our manufacturing process. T...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 150"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Cutting: 360 ipm
Max Torque: 90 ft-lbf
Max Thrust X: 3400 lbf
Max Thrust Y: 3400 lbf
Max Thrust Z: 5600 lbf
Max Tool Length: 16"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 150" x 28"
Dimensions: 348" x 110" x 130"
Weight: 36,300 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Cutting: 360 ipm
Max Torque: 90 ft-lbf
Max Thrust X: 3400 lbf
Max Thrust Y: 3400 lbf
Max Thrust Z: 5600 lbf
Max Tool Length: 16"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Table Size: 150" x 28"
Dimensions: 348" x 110" x 130"
Weight: 36,300 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
2 Speed Gearbox
40 Position Automatic Tool Changer
Chip Auger
Coolant Thru Spindle
2 Speed Gearbox
40 Position Automatic Tool Changer
Chip Auger
Seller:
MarcD774
Location:
IL
