Seller Needs:
$80,000|
1321
|
1

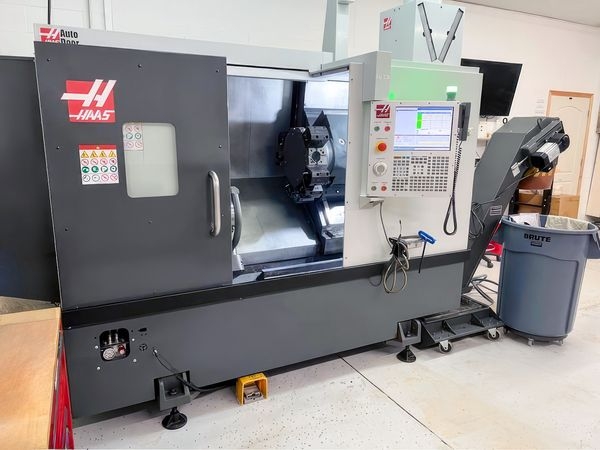

Presenting an opportunity to gain control of a feature-rich, gently used, and well-maintained 2019 HAAS ST20Y CNC Lathe. Located in Ohio, this precision lathe stands out as a valuable asset to any workshop and is available fo...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2"
Chuck Size: 8.3"
Spindle Speed: 5,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 6,000 RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 31.75"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Chuck Size: 8.3"
Spindle Speed: 5,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 6,000 RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 31.75"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Live Tooling
Y Axis
5 Axis
Mist Collector
Auto Door
Remote Jog Handle
Macros
Rigid Tapping
M19 Spindle Orientation
VPS Editing
Media Display
Max Memory: 1 GB
Wireless Networking
Compensation Tables
High Pressure Coolant
Max Spindle Speed: 5000 RPM
Max Live Tooling Speed: 6000 RPM
Chip Conveyor
Tool Presetter
Live Tooling
Y Axis
5 Axis
Mist Collector
Auto Door
Remote Jog Handle
Macros
Rigid Tapping
M19 Spindle Orientation
VPS Editing
Media Display
Max Memory: 1 GB
Wireless Networking
Compensation Tables
High Pressure Coolant
Max Spindle Speed: 5000 RPM
Max Live Tooling Speed: 6000 RPM
Seller:
TannE568
Location:
OH
