Seller Needs:
$55,000|
2912
|
2

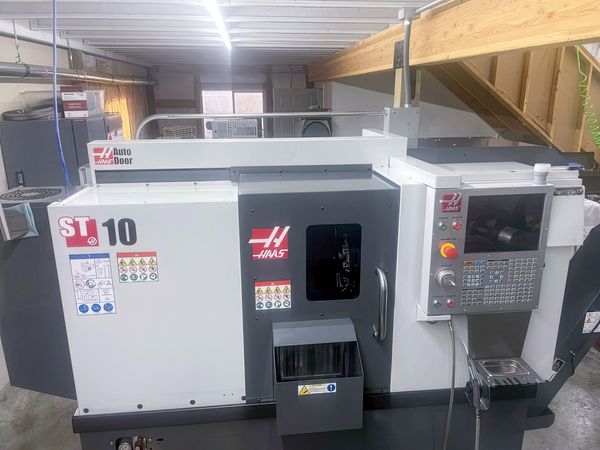

Situated in Idaho, we present an opportune chance to procure a top-of-the-line 2020 HAAS ST10 CNC Lathe which is in remarkably admirable condition and accessible momentarily. This machine, tailor-made to meet the vigorous dem...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 1.75"
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter: 16.5"
Max Thrust X: 3300 lbf
Max Thrust Z: 3300 lbf
Spindle Nose: A2-5
Max Torque: 75 ft-lbf
Spindle Bore: 2.31"
Drive System: Direct Speed
Coolant Cap: 30 gal
Dimensions: 126" x 70" x 80"
Weight: 7,900 LBS
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 16"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Part Diameter: 16.5"
Max Thrust X: 3300 lbf
Max Thrust Z: 3300 lbf
Spindle Nose: A2-5
Max Torque: 75 ft-lbf
Spindle Bore: 2.31"
Drive System: Direct Speed
Coolant Cap: 30 gal
Dimensions: 126" x 70" x 80"
Weight: 7,900 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Auto Door
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Auto Door
Seller:
MichM331
Location:
ID
