Seller Needs:
$71,500|
2015
|
7

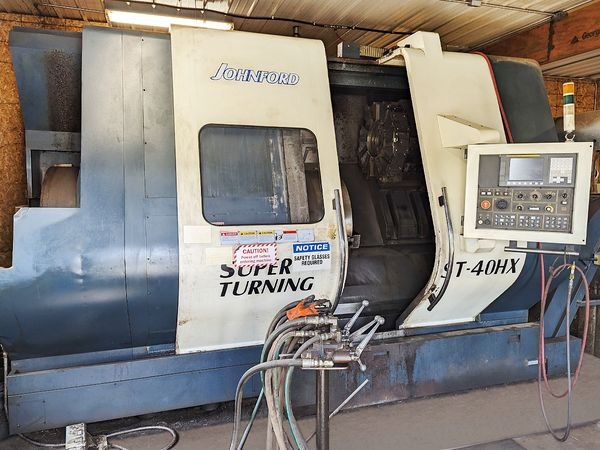

Our offering to you is a 2015 JOHNFORD ST40HX CNC Lathe which is available for immediate sale due to a change in our production requirements. The machine was primarily used to machine steel pipes, but it has the ability and v...Read More
Seller Needs:
Payment:
Rigging:
$3,800
Specs:
Bar Capacity: 14"
Chuck Size: 14.375"
Spindle Motor: 49 HP
X Axis Travel: 16.53"
Z Axis Travel: 31.49"
Turret Tools: 12 Station
2- 32" SMW Big Bore chucks
Front Spindle Nose: A2-20
Rear Spindle Nose: A2-20 Adapter
Rapid Traverse: X: 12; Z: 16 m/min
Servo Motor (X-Axis): 9.38 HP
Servo Motor (Z-AXIS): 9.38 HP
Dimensions: 226.29" x 96" x 116"
Weight: 11,500 LBS
Chuck Size: 14.375"
Spindle Motor: 49 HP
X Axis Travel: 16.53"
Z Axis Travel: 31.49"
Turret Tools: 12 Station
2- 32" SMW Big Bore chucks
Front Spindle Nose: A2-20
Rear Spindle Nose: A2-20 Adapter
Rapid Traverse: X: 12; Z: 16 m/min
Servo Motor (X-Axis): 9.38 HP
Servo Motor (Z-AXIS): 9.38 HP
Dimensions: 226.29" x 96" x 116"
Weight: 11,500 LBS
Options:
Fanuc Series Oi-D
Chip Conveyor
Rear Chuck
Chip Conveyor
Rear Chuck
Seller:
JeffC849
Location:
OH
