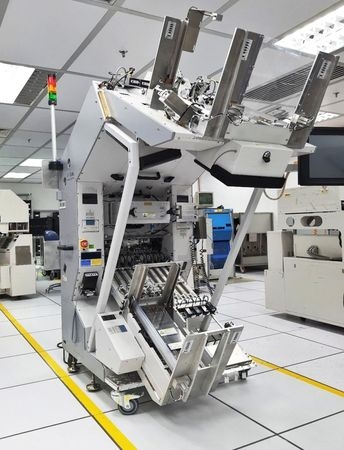

Modular designed gravity handler with various input and output possibilities. SO2000 can handle the smallest possible packages for gravity and provides a broad range of Sensor and MEMS applications.
Easy and quick package co...Read More
Seller Needs:
Payment:
Specs:
Base System
• Power Supply: AC208 - 230V / 50 - 60Hz
• Air Suply: 0.5 -0.9 Mpa
• LN2 pressure: 1.5 bar(22psi) min, 6bar(86psi) max.
• CDA dew point< -70°C
Physical Dimensions
• Height 2055mm
• Width 810mm
• Depth 1765mm
• Weight 550kg
Device type
• Dip 300mil single site
Temperature
• Tri-temp
• Range -60°C to +175 °C
• Soak Time Accuracy +/- 2°C
• Test site Accuracy +/-2 °C
• Guard Band down to +/-1°C
• Soak capacity up to 16 tubes
• Desoak capacity up to 16 tubes
Input/ Output Characteristics
• Auto loader & Auto unloader.
• input tube stack height 2 x 275mm
• output tube stack height 1 x 275mm
Electrical Interface
• TTL parallel standard
• RS232 standard
• IEEE488 optional
• USB at OPI standard
Performance
• Throughput standard kits up to 10,000 uph
• Index time down to 750ms
• Power Supply: AC208 - 230V / 50 - 60Hz
• Air Suply: 0.5 -0.9 Mpa
• LN2 pressure: 1.5 bar(22psi) min, 6bar(86psi) max.
• CDA dew point< -70°C
Physical Dimensions
• Height 2055mm
• Width 810mm
• Depth 1765mm
• Weight 550kg
Device type
• Dip 300mil single site
Temperature
• Tri-temp
• Range -60°C to +175 °C
• Soak Time Accuracy +/- 2°C
• Test site Accuracy +/-2 °C
• Guard Band down to +/-1°C
• Soak capacity up to 16 tubes
• Desoak capacity up to 16 tubes
Input/ Output Characteristics
• Auto loader & Auto unloader.
• input tube stack height 2 x 275mm
• output tube stack height 1 x 275mm
Electrical Interface
• TTL parallel standard
• RS232 standard
• IEEE488 optional
• USB at OPI standard
Performance
• Throughput standard kits up to 10,000 uph
• Index time down to 750ms
