Seller Needs:
$68,500|
143
|
1

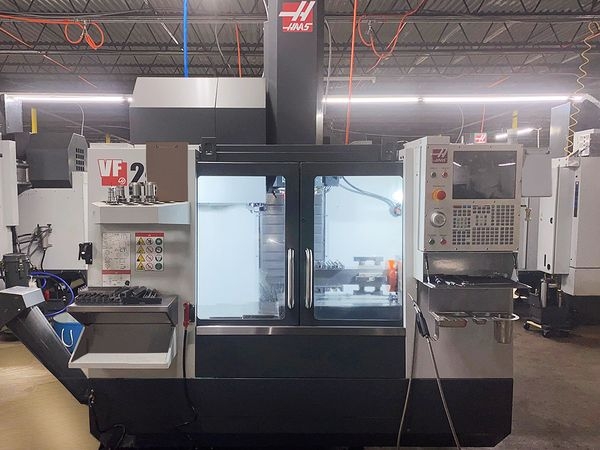

Pre-owned HAAS VF2SS 2021 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Cente...Read More
Seller Needs:
Payment:
Rigging:
$2,200
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Chip-to-Chip: 3.6 s
Coolant Cap: 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting: 833 ipm
Max Weight: 1500 lb
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Chip-to-Chip: 3.6 s
Coolant Cap: 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HRT210 Rotary Table Included
Wireless Intuitive Probing System with Probe Riser Block
Through Coolant Spindle 300psi 21 bar BR-BR
15,000 RPM Upgraded Spindle
High Speed Machining with Look Ahead
Side Mount Tool Changer
Auxiliary Coolant Filter System 25-micron filter
Automatic Air Gun
Chip Conveyor-Auger Style
Martin Trunnion Table Included - $2300 New
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HRT210 Rotary Table Included
Wireless Intuitive Probing System with Probe Riser Block
Through Coolant Spindle 300psi 21 bar BR-BR
15,000 RPM Upgraded Spindle
High Speed Machining with Look Ahead
Side Mount Tool Changer
Auxiliary Coolant Filter System 25-micron filter
Automatic Air Gun
Chip Conveyor-Auger Style
Martin Trunnion Table Included - $2300 New
Seller:
Ian F339
Location:
NC
