Seller Needs:
$68,500|
2489
|
5

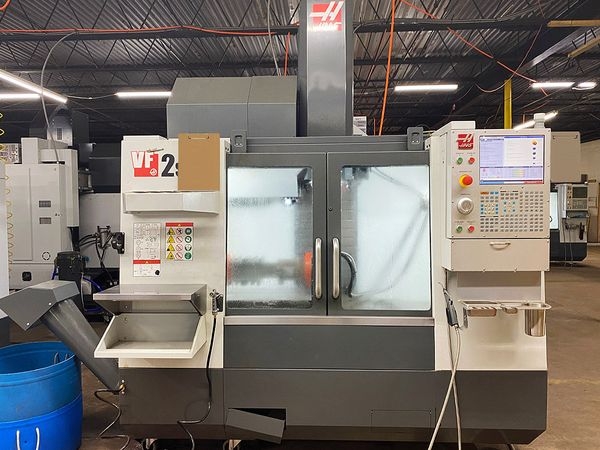

Presenting a top-of-the-line 2021 HAAS VF2SS Vertical Machining Center which is an embodiment of advanced technology and superior performance. Purchased new with a higher-end figure of $124,140, this high precision machine co...Read More
Seller Needs:
Payment:
Rigging:
$2,200
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 15,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 15,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HRT210 Rotary Table Included
Wireless Intuitive Probing System - Renishaw
Through Coolant Spindle 300psi 21 bar BR-BR
15,000 RPM Upgraded Spindle
High Speed Machining with Look Ahead
Side Mount Tool Changer
Auxiliary Coolant Filter System 25-micron filter
Automatic Air Gun
Chip Conveyor-Auger Style
Trunnion Table (available for an additional $1000)
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HRT210 Rotary Table Included
Wireless Intuitive Probing System - Renishaw
Through Coolant Spindle 300psi 21 bar BR-BR
15,000 RPM Upgraded Spindle
High Speed Machining with Look Ahead
Side Mount Tool Changer
Auxiliary Coolant Filter System 25-micron filter
Automatic Air Gun
Chip Conveyor-Auger Style
Trunnion Table (available for an additional $1000)
Seller:
Ian F339
Location:
NC
