Seller Needs:
$92,500|
1675
|
0

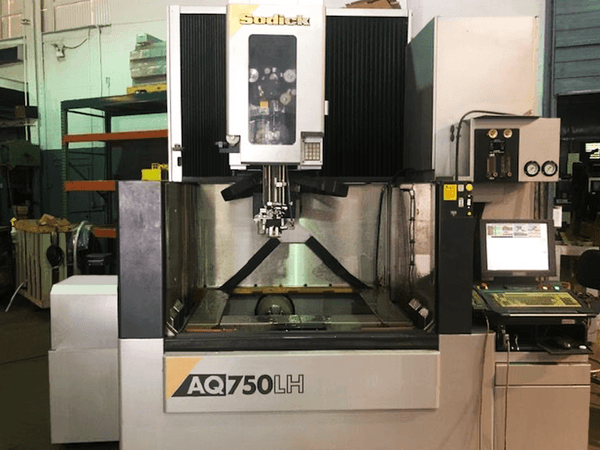

Pre-owned SODICK AQ750L+LN2WH 2012 EDM. This EDM has average cutting time and is equipped with a LN2WH CNC control. This CNC Machine is currently located in North Carolina. This SODICK EDM is available for a limited time. Ge...Read More
Seller Needs:
Payment:
Rigging:
$1,100
Specs:
SPECIFICATIONS INCLUDE:
X, Y & Z Axes Travel: 29.5” x 19.7” x 23.6”
U, V Axis Travel: 30.31” x 20.47”
Maximum Workpiece Size: 41.3” x 29.5
Maximum Workpiece Weight: 3300 Lbs.
Maximum Taper: ±30° @ 3.1”
Includes The Following:
LN2WH CNC Control
Linear Motors (X,Y,U,V)
Power Supply
Complete Dielectric Filtration System
Automatic Temperature Control Unit (Chiller)
Submersible Flushing
Automatic Wire Threading
USB
Wire Chopper
Machine Dimensions: 83" x 110" x 108"
Machine Tool Weight: 11,684lbs
X, Y & Z Axes Travel: 29.5” x 19.7” x 23.6”
U, V Axis Travel: 30.31” x 20.47”
Maximum Workpiece Size: 41.3” x 29.5
Maximum Workpiece Weight: 3300 Lbs.
Maximum Taper: ±30° @ 3.1”
Includes The Following:
LN2WH CNC Control
Linear Motors (X,Y,U,V)
Power Supply
Complete Dielectric Filtration System
Automatic Temperature Control Unit (Chiller)
Submersible Flushing
Automatic Wire Threading
USB
Wire Chopper
Machine Dimensions: 83" x 110" x 108"
Machine Tool Weight: 11,684lbs
Options:
LN2WH CNC
Type: CNC Wire
Submersible Flushing
Dielectric Filtration System
Chiller Unit
Wire Chopper
Auto Wire Threading
USB
Type: CNC Wire
Submersible Flushing
Dielectric Filtration System
Chiller Unit
Wire Chopper
Auto Wire Threading
USB
Seller:
StevG650
Location:
NC
