Seller Needs:
$63,500|
3033
|
5

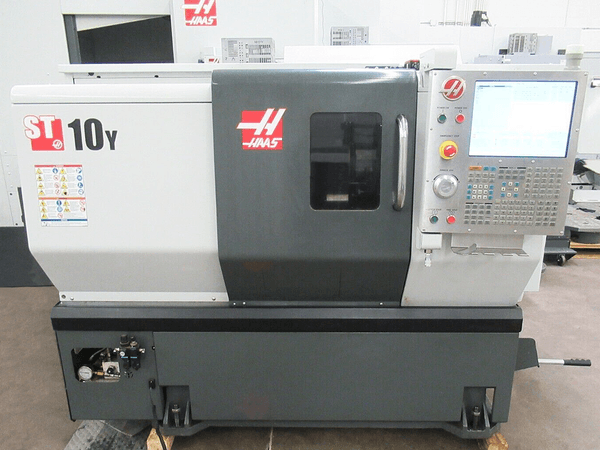

Looking to upgrade your metalworking shop or commence a new machining project? This authentic 2012 HAAS ST10Y CNC Lathe might just be the perfect fit for your needs. Crafted with precision and paying attention to every minor ...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 1.75"
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station (6 Live Milling Capable)
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.5"
Max Turning Length: 14"
Max Swing: 25.25"
Spindle Orientation: Full C-Axis (.01 Degree) Programmable
Y Axis ± 2"
Live Tooling 4000 rpm
Max Torque 75 ft-lb
Max Thrust X 2400 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 3700 lbf
Weight: 7,900 LBS
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station (6 Live Milling Capable)
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.5"
Max Turning Length: 14"
Max Swing: 25.25"
Spindle Orientation: Full C-Axis (.01 Degree) Programmable
Y Axis ± 2"
Live Tooling 4000 rpm
Max Torque 75 ft-lb
Max Thrust X 2400 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 3700 lbf
Weight: 7,900 LBS
Options:
Haas CNC Control with Coldfire Processor
Tool Presetter
Bar Feeder
Live Tooling
Y Axis
Renishaw Parts Probing System
Lexair Mini-Rhinobar MRB12-1.62 12' Bar Feed
6.5" 3-Jaw Hydraulic Chuck with Draw Tube and Actuator
12 Station VDi Turret
Ethernet
Macros
Microcentric Chuck
5C Collet Closer
Tool Presetter
Bar Feeder
Live Tooling
Y Axis
Renishaw Parts Probing System
Lexair Mini-Rhinobar MRB12-1.62 12' Bar Feed
6.5" 3-Jaw Hydraulic Chuck with Draw Tube and Actuator
12 Station VDi Turret
Ethernet
Macros
Microcentric Chuck
5C Collet Closer
Seller:
JohnL932
Location:
MN
