Seller Needs:
$99,000|
2888
|
15

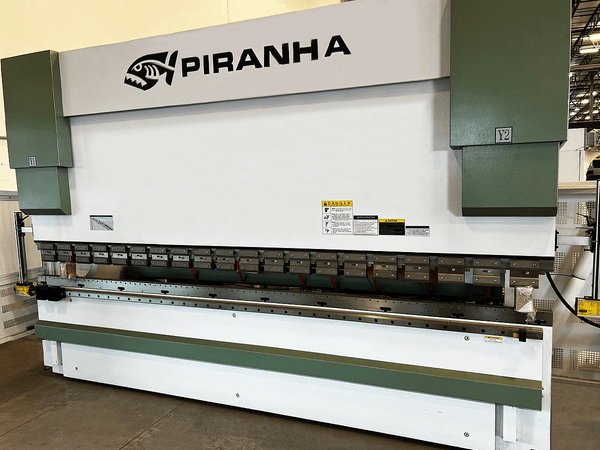

For sale is a pristine 2021 PIRANHA 180 13 Press Brake machine that has yet to be utilized, making it a great investment. Distinguished by its high-performance and modern design, the machine boasts practicality, sophisticatio...Read More
Seller Needs:
Payment:
Specs:
Pressure: 180 Tons
Length of Worktable: 161.4"
Die Rail Height: 3.15"
Distance Between Uprights: 141.5
Ram Stroke: 8.5"
Max open height (with die rail without clamps): 17.3"
Throat depth: 16.1"
Ram Speed (Approach): 401 IPM
Ram Speed (Work): 26 IPM
Ram Speed (Return): 330 IPM
Repeatability: 0.0004"
Back Gauge X (Stroke): 19.7"
Back Gauge X (Work Piece Size): 0-33.5"
Back Gauge X (Max Running Speed): 708 IPM
Back Gauge X (Re-Position): 0.001"
Oil Capacity: 115 Gallons
Motor: 20 HP
- Y1, Y2 Control ram movement
- X or (X1, X2) Control back gauge front and rear movement
- X1 Prime Controls X1 only 3.94” +/-
- R or (R1, R2) Controls back gauge bar up and down
- Z1/Z2 Controls back gauge fingers left and right
- S Control compensation crowning system
Ram
- Double guide/gib system ensures precise ram movement
- Parallel tolerance of Y1 and Y2 +/- 0.0004”
- Y1 and Y2 can be programmed separately allowing for off center loading or cone bending
- Dwell at the bottom of stroke can hold the work piece clamped under pressure
- Slow speed return, allows the operator to control work piece after the bend is completed
- European/American Reversible Precision clamping style for upper tool holder
Back gauge system
- Available up to 6 axis for complex parts with multiple bends
- High speed precision back gauge .001 repeatability
- X axis is driven by digital AC Servo-motors with ball screw and linear ways
- Back gauge is a box tube design for mechanical strength and rigidity
- Fingers are designed to increase the working range of back gauge
Dimensions: 197" x 73" x 105"
Weight: 32,000
Length of Worktable: 161.4"
Die Rail Height: 3.15"
Distance Between Uprights: 141.5
Ram Stroke: 8.5"
Max open height (with die rail without clamps): 17.3"
Throat depth: 16.1"
Ram Speed (Approach): 401 IPM
Ram Speed (Work): 26 IPM
Ram Speed (Return): 330 IPM
Repeatability: 0.0004"
Back Gauge X (Stroke): 19.7"
Back Gauge X (Work Piece Size): 0-33.5"
Back Gauge X (Max Running Speed): 708 IPM
Back Gauge X (Re-Position): 0.001"
Oil Capacity: 115 Gallons
Motor: 20 HP
- Y1, Y2 Control ram movement
- X or (X1, X2) Control back gauge front and rear movement
- X1 Prime Controls X1 only 3.94” +/-
- R or (R1, R2) Controls back gauge bar up and down
- Z1/Z2 Controls back gauge fingers left and right
- S Control compensation crowning system
Ram
- Double guide/gib system ensures precise ram movement
- Parallel tolerance of Y1 and Y2 +/- 0.0004”
- Y1 and Y2 can be programmed separately allowing for off center loading or cone bending
- Dwell at the bottom of stroke can hold the work piece clamped under pressure
- Slow speed return, allows the operator to control work piece after the bend is completed
- European/American Reversible Precision clamping style for upper tool holder
Back gauge system
- Available up to 6 axis for complex parts with multiple bends
- High speed precision back gauge .001 repeatability
- X axis is driven by digital AC Servo-motors with ball screw and linear ways
- Back gauge is a box tube design for mechanical strength and rigidity
- Fingers are designed to increase the working range of back gauge
Dimensions: 197" x 73" x 105"
Weight: 32,000
Options:
Delem CNC controller from the Netherlands
Offline programming capable
Standard tooling and configuration
Offline programming capable
Standard tooling and configuration
Seller:
TomN805
Location:
FL
