Seller Needs:
$131,500|
1006
|
0

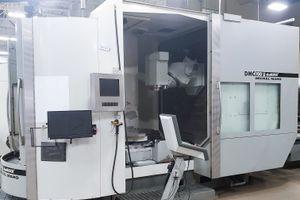

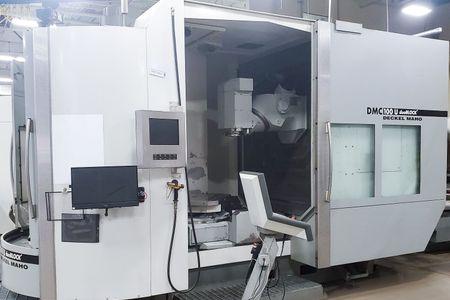

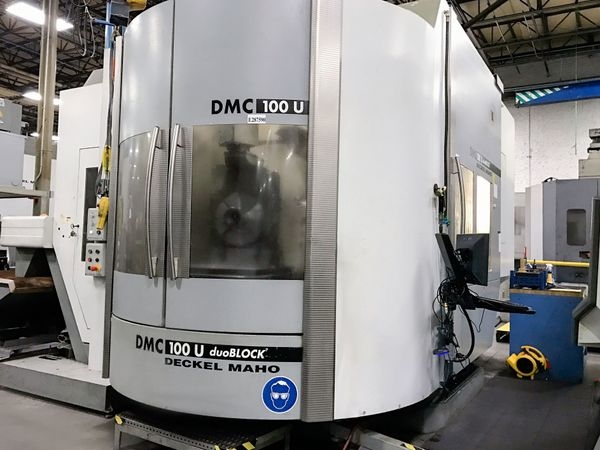

Presenting a used 2005 DMG DMC 100 U DUOBLOCK Horizontal Machining Center for sale, located in Texas. This impressive equipment is no longer required for our operations and is immediately available, making it the right fit fo...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 39.4"
Y Axis Travel: 39.4"
Z Axis Travel: 39.4"
Rapid Rate X Axis: 1,381 IPM
Rapid Rate Y Axis: 1,381 IPM
Rapid Rate Z Axis: 1,381 IPM
Spindle Speed: 10,000 RPM
Spindle Motor: 37.5 HP
Spindle Taper: HSK100 CT
Tool Changer: 120 ATC
Max Pallet Load: 3310 LBS
Cutting Feedrate: 1181 IPM
Tool Changer Capacity: 120 ATC
Tool Change Time: 2.0 Seconds
Max. Tool Diameter: 4.3"
Max. Tool Length: 19.7"
Max. Tool Weight: 66 LBS
Max. Workpiece Diameter: 39.4"
Max. Workpiece Height: 47.2"
Number of Pallets: 2
Pallet Size: 39.4" x 31.5"
Pallet Change Time: 18 Seconds
B Axis Rotation: .001 Degree
C Axis Rotation: .001 Degree
Head Swivel: 0-150 degrees
Pallet Size: 39.4" x 39.4"
Dimensions: 210" x 182" x 130"
Weight: 41,888 LBS
Y Axis Travel: 39.4"
Z Axis Travel: 39.4"
Rapid Rate X Axis: 1,381 IPM
Rapid Rate Y Axis: 1,381 IPM
Rapid Rate Z Axis: 1,381 IPM
Spindle Speed: 10,000 RPM
Spindle Motor: 37.5 HP
Spindle Taper: HSK100 CT
Tool Changer: 120 ATC
Max Pallet Load: 3310 LBS
Cutting Feedrate: 1181 IPM
Tool Changer Capacity: 120 ATC
Tool Change Time: 2.0 Seconds
Max. Tool Diameter: 4.3"
Max. Tool Length: 19.7"
Max. Tool Weight: 66 LBS
Max. Workpiece Diameter: 39.4"
Max. Workpiece Height: 47.2"
Number of Pallets: 2
Pallet Size: 39.4" x 31.5"
Pallet Change Time: 18 Seconds
B Axis Rotation: .001 Degree
C Axis Rotation: .001 Degree
Head Swivel: 0-150 degrees
Pallet Size: 39.4" x 39.4"
Dimensions: 210" x 182" x 130"
Weight: 41,888 LBS
Options:
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
5 Axis
Heidenhain Mill Plus CNC
120 Position Shelf Type Tool Magazine
Full 5th Axis 300mm Tsudakoma Rotary Table
Coolant Thru Spindle / Tool / Side Discharge / Flood / Wash Down
Coolant Filtration System
Probe
Coolant Thru Spindle
360,000 Full 4th
5 Axis
Heidenhain Mill Plus CNC
120 Position Shelf Type Tool Magazine
Full 5th Axis 300mm Tsudakoma Rotary Table
Coolant Thru Spindle / Tool / Side Discharge / Flood / Wash Down
Coolant Filtration System
Seller:
JoeB630
Location:
TX
