Seller Needs:
$27,500|
4333
|
23

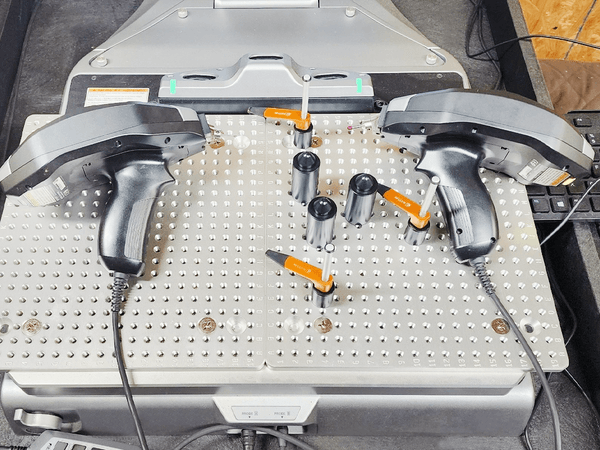

The KEYENCE XM 2200 Inspection is a top-of-the-line machine that is perfect for any industrial inspection needs. This machine is a 2021 model and is brand new, with a price tag of $70,000. It is a powerful and reliable machi...Read More
Seller Needs:
Payment:
Specs:
Model
XM-2200
Type
Measuring unit
Camera
Image pickup device
4 megapixel CMOS image sensor
Wavelength at light receiving center
Near-infrared
Measuring range
600 mm × 300 mm × 200 mm 23.62" × 11.81" × 7.87"
Min. display unit
Distance
1 ?m
Angle
0.0001 degrees
Measurement accuracy
Repeatability
Stage locked: ±3 ?m
Stage unlocked: ±4 ?m
Indication error
Stage locked: ±8 ?m *1
Stage unlocked: ± (10 + L/100) ?m *2
Stage
Withstand load
25 kg
X-axis movable range
±100 mm 3.94"
Rotation range
±60°
Probe
No. of probes
1
Stage marker
No. of markers
6
Marker light source
Near-infrared LED (870 nm)
Probe connection port
2 inputs
Console input
External remote input
Non-voltage input (contact/non-contact): 2 inputs
Interfaces
Communication (external communication)
USB 2.0 Series A: 3 ports
Ambient temperature
+10 to +35°C 50 to 95°F
Relative humidity
20 to 80% RH (no condensation)
Weight
Head: Approx. 39.6 kg (including camera and cable)
Console: Approx. 150 g (including cable)
XM-2200
Type
Measuring unit
Camera
Image pickup device
4 megapixel CMOS image sensor
Wavelength at light receiving center
Near-infrared
Measuring range
600 mm × 300 mm × 200 mm 23.62" × 11.81" × 7.87"
Min. display unit
Distance
1 ?m
Angle
0.0001 degrees
Measurement accuracy
Repeatability
Stage locked: ±3 ?m
Stage unlocked: ±4 ?m
Indication error
Stage locked: ±8 ?m *1
Stage unlocked: ± (10 + L/100) ?m *2
Stage
Withstand load
25 kg
X-axis movable range
±100 mm 3.94"
Rotation range
±60°
Probe
No. of probes
1
Stage marker
No. of markers
6
Marker light source
Near-infrared LED (870 nm)
Probe connection port
2 inputs
Console input
External remote input
Non-voltage input (contact/non-contact): 2 inputs
Interfaces
Communication (external communication)
USB 2.0 Series A: 3 ports
Ambient temperature
+10 to +35°C 50 to 95°F
Relative humidity
20 to 80% RH (no condensation)
Weight
Head: Approx. 39.6 kg (including camera and cable)
Console: Approx. 150 g (including cable)
Options:
Has the add on for Cad Import Export and AS9102 Forms
Seller:
RyanW755
Location:
WV
