Seller Needs:
$19,500|
138
|
2

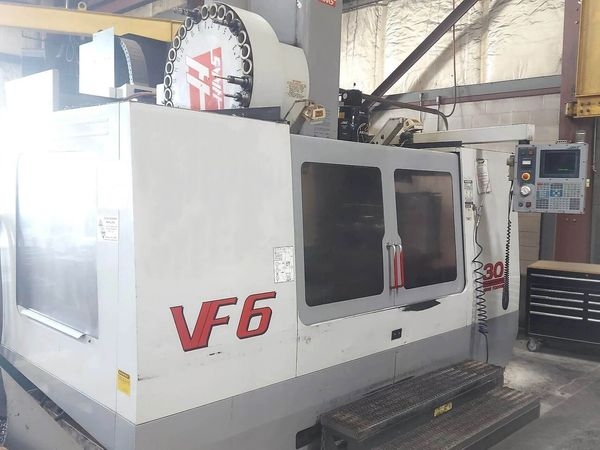

This 2001 HAAS VF6-50 is a noteworthy machine with a host of useful features. It offers an X Axis Travel of 64", Y Axis Travel of 32", and Z Axis Travel of 30".
The machine is specially built with a 2-speed gearbox, a 4th axi...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 5,000 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Drive System: 2-Speed Gearbox
Max Torque: 340 ft-lbt
Max Weight: 4,000 lbs
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Diameter: 4"
Max Tool Diameter: 10"
Max Tool Length: 16"
Max Tool Weight: 30 LBS.
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s
Table Size: 64" x 28"
Dimensions: 195" x 115" x 132"
Weight: 25,500 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 5,000 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Drive System: 2-Speed Gearbox
Max Torque: 340 ft-lbt
Max Weight: 4,000 lbs
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Diameter: 4"
Max Tool Diameter: 10"
Max Tool Length: 16"
Max Tool Weight: 30 LBS.
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s
Table Size: 64" x 28"
Dimensions: 195" x 115" x 132"
Weight: 25,500 LBS
Options:
Coolant Thru Spindle
Programmable Coolant
2 Speed Gearbox
4th Axis Drive & Wiring
Sidemount Tool Changer 30 ATC
Chip Auger
High Intensity Lighting
Remote Jog Handle
Royal Mist Collector
Spindle Orientation
Spindle Load Monitor
Negative Work Offset
Quick Code
Rigid Tapping
USB Port
RS232
**ROTARY TABLE NOT INCLUDED**
Programmable Coolant
2 Speed Gearbox
4th Axis Drive & Wiring
Sidemount Tool Changer 30 ATC
Chip Auger
High Intensity Lighting
Remote Jog Handle
Royal Mist Collector
Spindle Orientation
Spindle Load Monitor
Negative Work Offset
Quick Code
Rigid Tapping
USB Port
RS232
**ROTARY TABLE NOT INCLUDED**
Seller:
DonA299
Location:
USA
