Seller Needs:
$115,500|
243
|
0

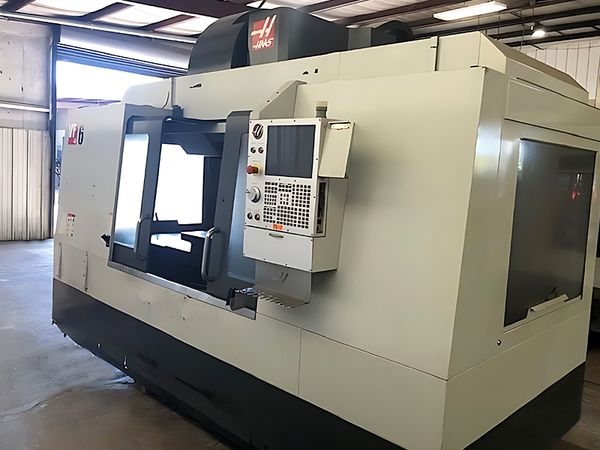

This 2019 HAAS VF6-50 Vertical Machining Center is a top-notch machine for all your machining needs. It's in great shape and works like a charm. It's well known for its smooth operation and longevity.
This machine is e...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Drive System: 2-Speed Gearbox
Max Torque: 340 ft-lbt
Max Weight: 4,000 lbs
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Diameter: 4"
Max Tool Diameter: 10"
Max Tool Length: 16"
Max Tool Weight: 30 LBS.
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s
Table Size: 64" x 28"
Dimensions: 195" x 115" x 132"
Weight: 25,500 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Drive System: 2-Speed Gearbox
Max Torque: 340 ft-lbt
Max Weight: 4,000 lbs
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Diameter: 4"
Max Tool Diameter: 10"
Max Tool Length: 16"
Max Tool Weight: 30 LBS.
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s
Table Size: 64" x 28"
Dimensions: 195" x 115" x 132"
Weight: 25,500 LBS
Options:
Next Gen Control
Probe
Coolant Thru Spindle
Programmable Coolant
Chip Auger
Standard Program Memory 1MB
2 Speed Gearbox
95-Gallon (360 liter) Coolant Tank with 3/4 hp (0.6 kW) pump
Ethernet Interface
HaasConnect
Rigid Tapping
Side-Mount Tool Changer, 50 taper, 30+1 tools
Visual Part Programming System
User-Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
High-Intensity Lighting
Internal High-Voltage Isolated Transformer for 380-480V operation
Auxiliary Coolant Filter System
Probe
Coolant Thru Spindle
Programmable Coolant
Chip Auger
Standard Program Memory 1MB
2 Speed Gearbox
95-Gallon (360 liter) Coolant Tank with 3/4 hp (0.6 kW) pump
Ethernet Interface
HaasConnect
Rigid Tapping
Side-Mount Tool Changer, 50 taper, 30+1 tools
Visual Part Programming System
User-Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
High-Intensity Lighting
Internal High-Voltage Isolated Transformer for 380-480V operation
Auxiliary Coolant Filter System
Seller:
JoeC750
Location:
MS
