Seller Needs:
$120,000|
399
|
2

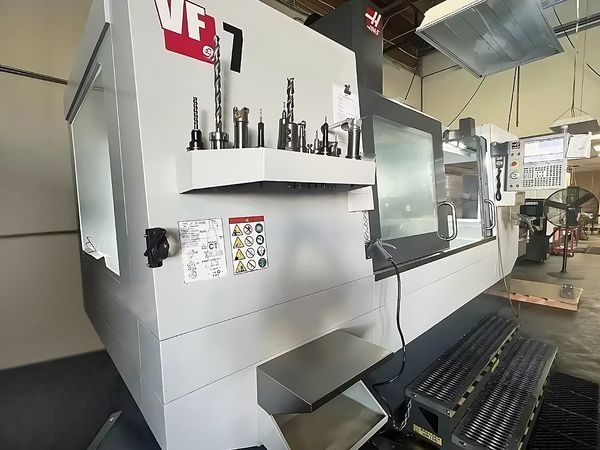

This 2021 HAAS VF7 is a current model built with the latest technology for top-notch machining. It's in good shape and has been treated well, providing quality work without any issues.
The machine has a large work space, a...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 84"
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30+1 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 84" x 28"
Dimensions: 214" x 102" x 130"
Weight: 25,600 LBS
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30+1 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 84" x 28"
Dimensions: 214" x 102" x 130"
Weight: 25,600 LBS
Options:
Probe
Programmable Coolant
4th Axis Wiring
Extra Z Clearance 8” Riser
Through Spindle Coolant Ready
High Speed Machining
Rigid Tapping
Auto Doors
Coolant Mist Condenser
Minimum Quality Lubrication System
Coordinate Rotation & Scaling and Visual Part Programming System
Internal High-Volt Isolated Transformer
Remote Jog Handle
Programmable Coolant
4th Axis Wiring
Extra Z Clearance 8” Riser
Through Spindle Coolant Ready
High Speed Machining
Rigid Tapping
Auto Doors
Coolant Mist Condenser
Minimum Quality Lubrication System
Coordinate Rotation & Scaling and Visual Part Programming System
Internal High-Volt Isolated Transformer
Remote Jog Handle
Seller:
GeorM229
Location:
USA
