Seller Needs:
$168,000|
275
|
0

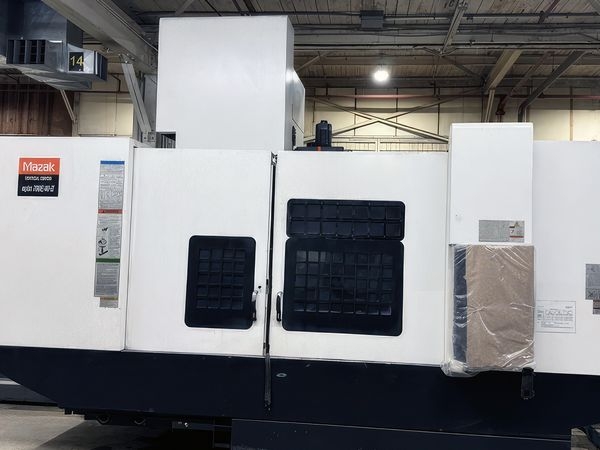

Pre-owned MAZAK VCN 700E-40 II 2013 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Mazatrol Matrix Nexus control. This CNC Machine is currently located in USA. This M...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 80"
Y Axis Travel: 27.6"
Z Axis Travel: 28.3"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 48 ATC
Table Size: 80" x 27.5"
Dimensions: 198" x 139" x 140"
Weight: 26,500 LBS
Power Requirements - 575 V, 3 Ph, 60 Hz, 80 Amps, 50 KVA
Y Axis Travel: 27.6"
Z Axis Travel: 28.3"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 48 ATC
Table Size: 80" x 27.5"
Dimensions: 198" x 139" x 140"
Weight: 26,500 LBS
Power Requirements - 575 V, 3 Ph, 60 Hz, 80 Amps, 50 KVA
Options:
Mazatrol Matrix Nexus
Probe
Chip Conveyor
Coolant Thru Spindle
Remote Pulse Generator
Fixture Plate - 80” x 27.5” x 3” with T-Slots (2) and tapped holes
Probe
Chip Conveyor
Coolant Thru Spindle
Remote Pulse Generator
Fixture Plate - 80” x 27.5” x 3” with T-Slots (2) and tapped holes
Seller:
ScotS869
Location:
USA
