Seller Needs:
$48,500|
277
|
1

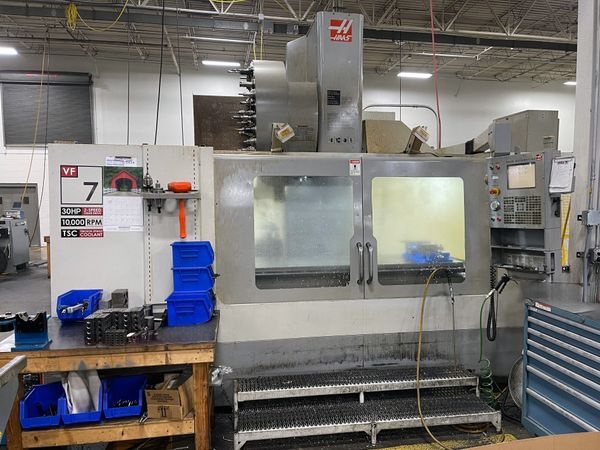

This 2006 HAAS VF7-50 Vertical Machining Center is ready to navigate the toughest of jobs. It comes loaded with a range of extras and upgrades that are sure to boost productivity. It has been well cared for throughout its use...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 84"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 50 CT
Tool Changer: 24 ATC
Drive System 2-Speed Gearbox
Max Torque 340 ft-lbt
Max Weight 4,000 lbs
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Table Size: 84" x 28"
Dimensions: 214" x 102" x 132"
Weight: 26,500 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 50 CT
Tool Changer: 24 ATC
Drive System 2-Speed Gearbox
Max Torque 340 ft-lbt
Max Weight 4,000 lbs
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Table Size: 84" x 28"
Dimensions: 214" x 102" x 132"
Weight: 26,500 LBS
Options:
Probe
Coolant Thru Spindle
10,000 RPM Spindle
2-Speed Gearbox
High Intensity Lighting
Remote Jog Handle
Chip Auger
Coolant Thru Spindle
10,000 RPM Spindle
2-Speed Gearbox
High Intensity Lighting
Remote Jog Handle
Chip Auger
Seller:
CurtT295
Location:
KY
