Seller Needs:
$49,500|
356
|
0

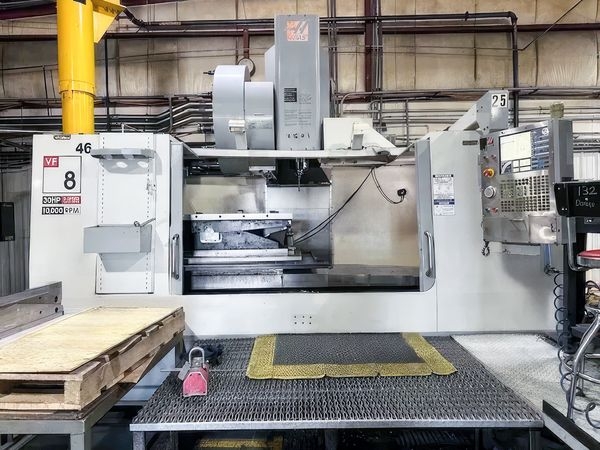

This 2008 HAAS VF8-50 Vertical Machining Center is now up for grabs. It is a robust and versatile piece of machinery and has been a key asset in our tool shop. Over the years, its steady performance has proven invaluable in o...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 64"
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 50 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Table Size: 64" x 36"
Dimensions: 193" x 120" x 132"
Weight: 29,000 LBS
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 50 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Table Size: 64" x 36"
Dimensions: 193" x 120" x 132"
Weight: 29,000 LBS
Options:
Probe
10,000 RPM Spindle
2-Speed Gearbox
Chip Auger
Rigid Tapping
High Speed Machining
Remote Jog Handle
Visual Quick Code
USB Port
Sidemount Tool Changer
High Intensity Lighting
Remote Jog Handle
10,000 RPM Spindle
2-Speed Gearbox
Chip Auger
Rigid Tapping
High Speed Machining
Remote Jog Handle
Visual Quick Code
USB Port
Sidemount Tool Changer
High Intensity Lighting
Remote Jog Handle
Seller:
NickM992
Location:
LA
