Seller Needs:
$81,500|
575
|
7

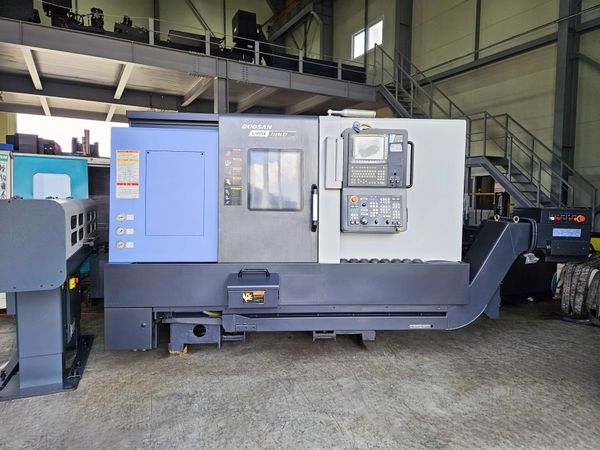

This 2018 DOOSAN LYNX 2100LSYB CNC Lathe brings together mind-blowing toughness with top-of-the-line tech. Manufactured by DOOSAN, it's no secret this lathe is a great fit for any work environment given its robust features an...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.07"
Z Axis Travel: 22"
Rapid Rate Z Axis: 1,417 IPM
Turret Tools: 24 Station BMT45P
Rapid Rate X Axis: 1,417 IPM
Max Turning Dia: 11.8"
Max Turning Length: 20"
Max Swing: 23.6"
C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate (RPM) 200
C-axis contouring torque (63Nm) 46.4 ft-lbs
C-axis braking torque (511Nm) 376 ft-lbs
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.
ROTATING TOOLS:
Rotating tool RPM 60 - 6,000 RPM
Rotating tool spindle motor (10 min. rating) 5 Hp
Rotating tool torque (10 min. rating 17.3 lbs.
Rotating tool collet type ER 20
Milling collet capacity .78" to .5"
Y-AXIS:
Y-axis travel 4.13” (±2.065”)
Y-axis rapid traverse rate 394 IPM
SUB SPINDLES:
B axis travel (sub spindle) 22.0”
Sub spindle guideway span 8.93”
Spindle speed 6,000 RPM
Spindle motor (30 min. rating) 7.3 HP
Maximum torque (30 min. rating) 34 ft-lbs.
Spindle nose 110mm flat nose
Spindle bore 1.69”
Draw tube ID 1.375"
Rapid traverse rate (30 m/min) 1181 IPM
Minimum programmable angle .001 degree (full C axis)
Weight: 8,800 LBS
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.07"
Z Axis Travel: 22"
Rapid Rate Z Axis: 1,417 IPM
Turret Tools: 24 Station BMT45P
Rapid Rate X Axis: 1,417 IPM
Max Turning Dia: 11.8"
Max Turning Length: 20"
Max Swing: 23.6"
C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate (RPM) 200
C-axis contouring torque (63Nm) 46.4 ft-lbs
C-axis braking torque (511Nm) 376 ft-lbs
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.
ROTATING TOOLS:
Rotating tool RPM 60 - 6,000 RPM
Rotating tool spindle motor (10 min. rating) 5 Hp
Rotating tool torque (10 min. rating 17.3 lbs.
Rotating tool collet type ER 20
Milling collet capacity .78" to .5"
Y-AXIS:
Y-axis travel 4.13” (±2.065”)
Y-axis rapid traverse rate 394 IPM
SUB SPINDLES:
B axis travel (sub spindle) 22.0”
Sub spindle guideway span 8.93”
Spindle speed 6,000 RPM
Spindle motor (30 min. rating) 7.3 HP
Maximum torque (30 min. rating) 34 ft-lbs.
Spindle nose 110mm flat nose
Spindle bore 1.69”
Draw tube ID 1.375"
Rapid traverse rate (30 m/min) 1181 IPM
Minimum programmable angle .001 degree (full C axis)
Weight: 8,800 LBS
Options:
Fanuc i Series
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
OlivK887
Location:
USA
