Seller Needs:
$123,500|
663
|
0

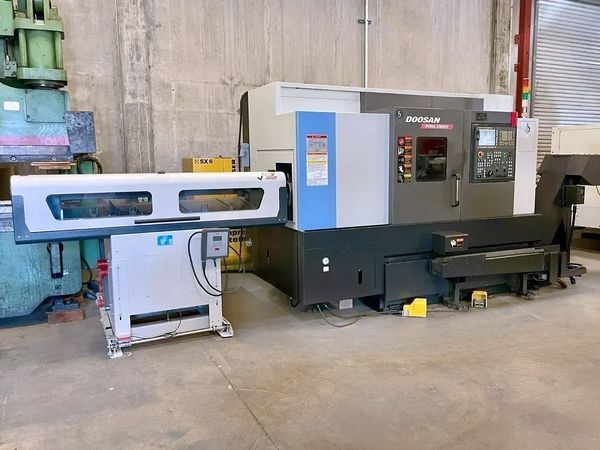

This 2012 DOOSAN PUMA 2100SY is a piece of machinery you will want to have in your business. Created by DOOSAN, a brand known for its strong build and high-quality design, this machine is built to last. Though it's not new, t...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.68"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.2"
Z Axis Travel: 23.2"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 15.98"
Max Turning Length: 20.47"
Max Swing: 30.7"
MAIN SPINDLE C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate 400 RPM
C-axis contouring torque 70 ft-lbs
C-axis braking torque 663 ft-lbs
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.
ROTATING TOOLS:
Rotating tool RPM 5,000 RPM
Rotating tool spindle motor (15 min rating) 7.5 Hp
Rotating tool collet type ER25
Milling collet capacity (2 – 16mm) 1/8” to 5/8"
Max. tool length facing sub spindle head 3.94”
Max. X-axis tool length with Y-axis in any position 3.8”
Y-AXIS:
Y-axis travel 4.13”
Axis rapid traverse rate 394 IPM
SUB SPINDLES:
B axis travel (sub spindle) 23.2”
Sub spindle guideway span 13.2”
Spindle speed 6,000 RPM
Spindle motor (30 min. rating) 20 HP
Maximum torque (30 min. rating) 98 ft-lbs
Spindle nose A2-5
Spindle bore (62mm) 2.44”
Draw tube ID (50mm) 1.97"
Rapid traverse rate (30 m/min) 1181 IPM
Minimum programmable angle .001 degree (full C axis)
Dimensions: 125" x 74" x 85"
Weight: 13,000 LBS
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.2"
Z Axis Travel: 23.2"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 15.98"
Max Turning Length: 20.47"
Max Swing: 30.7"
MAIN SPINDLE C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate 400 RPM
C-axis contouring torque 70 ft-lbs
C-axis braking torque 663 ft-lbs
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.
ROTATING TOOLS:
Rotating tool RPM 5,000 RPM
Rotating tool spindle motor (15 min rating) 7.5 Hp
Rotating tool collet type ER25
Milling collet capacity (2 – 16mm) 1/8” to 5/8"
Max. tool length facing sub spindle head 3.94”
Max. X-axis tool length with Y-axis in any position 3.8”
Y-AXIS:
Y-axis travel 4.13”
Axis rapid traverse rate 394 IPM
SUB SPINDLES:
B axis travel (sub spindle) 23.2”
Sub spindle guideway span 13.2”
Spindle speed 6,000 RPM
Spindle motor (30 min. rating) 20 HP
Maximum torque (30 min. rating) 98 ft-lbs
Spindle nose A2-5
Spindle bore (62mm) 2.44”
Draw tube ID (50mm) 1.97"
Rapid traverse rate (30 m/min) 1181 IPM
Minimum programmable angle .001 degree (full C axis)
Dimensions: 125" x 74" x 85"
Weight: 13,000 LBS
Options:
Fanuc
Live Tooling
Sub Spindle
Y Axis
5 Axis
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
MarkP815
Location:
USA
