MAZAK M5 120IN CNC Lathe

user
Seller Needs:
$55,000
|
Views:
561
|
Watchers:
0

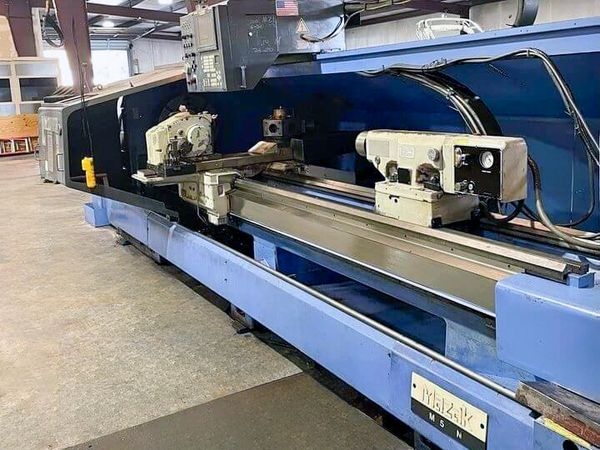

This 2006 MAZAK M5 120IN is a used product that's ready to perform your industrial operations. This machine, fitted with a Tailstock, is part of the famed Mazak M5 series which are well-known for their sturdiness and capacity...Read More

Specs:
Bar Capacity: 6.5"
Chuck Size: 18"
Spindle Speed: 2,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 21.26"
Z Axis Travel: 102.5"
Rapid Rate Z Axis: 394 IPM
Turret Tools: 14 Station
Rapid Rate X Axis: 394 IPM
Max Turning Dia: 13"
Max Turning Length: 102"
Max Swing: 24"
Spindle Bore: 4.5"
Spindle Nose A2-11
Vertical Turret Capacity: 8 Stations
Horizontal Turret Capacity: 6 Stations
Turret Index Time: 1 Second
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.97?
Tailstock Quill Travel: 4.7?
Dimensions: 288" x 90" x 78"
Weight: 16,000 LBS
Options:
Mazatrol
Tailstock
