Seller Needs:
$73,500|
810
|
6

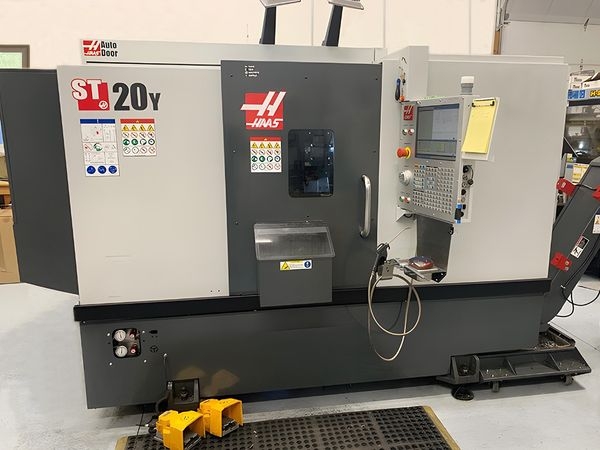

Pre-owned HAAS ST20Y 2019 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in Montana. This HAAS CNC Lathe is available for a l...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,500 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
WIPS - Renishaw
Royal Collets on both ends
High Pressure Coolant
Auxiliary Coolant Filter
Auto Door
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
WIPS - Renishaw
Royal Collets on both ends
High Pressure Coolant
Auxiliary Coolant Filter
Auto Door
Seller:
KathP529
Location:
MT
