Seller Needs:
$12,500|
647
|
0

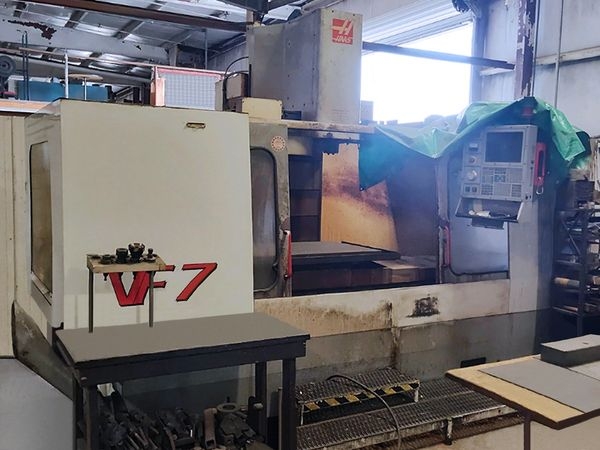

Pre-owned HAAS VF7 2000 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This HAAS Vertical Machining Cen...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 84"
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 84" x 28"
Weight: 25,600 LBS
Y Axis Travel: 32"
Z Axis Travel: 32"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 84" x 28"
Weight: 25,600 LBS
Options:
Chip Auger
Seller:
KareS386
Location:
FL
