Seller Needs:
$24,500|
610
|
0

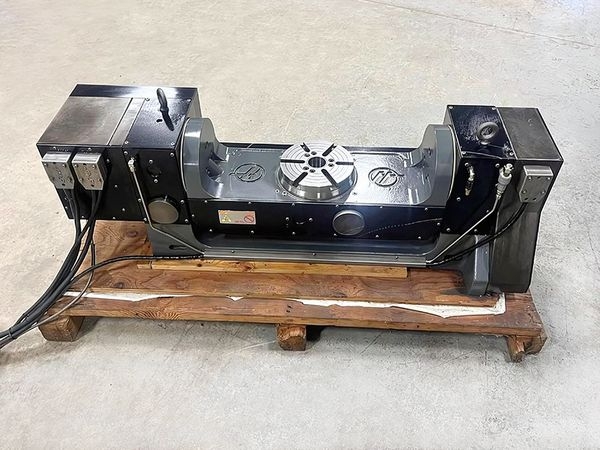

Pre-owned HAAS TR210 2013 Tooling and Workholding. This Tooling and Workholding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Pennsylvania. This HAAS Tooling and Workhol...Read More
Seller Needs:
Payment:
Specs:
Platter Diameter: 8.30 in / 210 mm
Max Weight on Platter: 200 lb / 91.0 kg
Part Swing Max: 23.5 in / 597 mm
Number of Std T-Slots: 6 @ 60°
SPINDLE - A / TILT
Max Speed: 60 °/sec
Max Torque: 300 ft-lbs
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 psi/6.9 bar: 400 ft-lbs
SPINDLE B / ROTARY
Max Speed: 60 °/sec
Max Torque: 210 ft-lbs
Runout Max: 0.0005 in
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 psi/6.9 bar: 200 ft-lbs
INDEXING A / TILT
Max Rotation/Step: ± 120 °
Resolution: 0.001 °
Accuracy (±) : ± 15 arc-sec
Repeatability: 10 arc-sec
INDEXING B / TILT
Max Rotation/Step (with rotary control): 999.999 °
Resolution: 0.001 °
Repeatability: 10 arc-sec
Air Requirements: 150 psi
Max Weight on Platter: 200 lb / 91.0 kg
Part Swing Max: 23.5 in / 597 mm
Number of Std T-Slots: 6 @ 60°
SPINDLE - A / TILT
Max Speed: 60 °/sec
Max Torque: 300 ft-lbs
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 psi/6.9 bar: 400 ft-lbs
SPINDLE B / ROTARY
Max Speed: 60 °/sec
Max Torque: 210 ft-lbs
Runout Max: 0.0005 in
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 psi/6.9 bar: 200 ft-lbs
INDEXING A / TILT
Max Rotation/Step: ± 120 °
Resolution: 0.001 °
Accuracy (±) : ± 15 arc-sec
Repeatability: 10 arc-sec
INDEXING B / TILT
Max Rotation/Step (with rotary control): 999.999 °
Resolution: 0.001 °
Repeatability: 10 arc-sec
Air Requirements: 150 psi
Seller:
Art L369
Location:
PA
