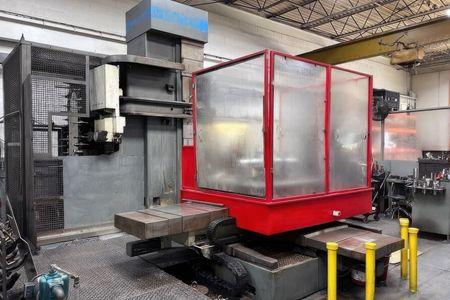

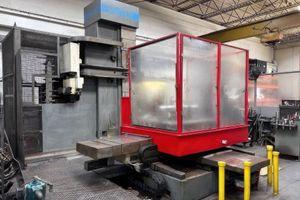

TOS WH105 Boring Mill

user
Seller Needs:
$265,500
|
Views:
979
|
Watchers:
0

Pre-owned TOS WH105 2020 Boring Mill. This Boring Mill has average cutting time and is equipped with a Heidenhain ITNC426 P control. This CNC Machine is currently located in USA. This TOS Boring Mill is available for a limite...Read More

Specs:
X Axis Travel: 70.86"
Y Axis Travel: 49.21"
Z Axis Travel: 49.21"
W Axis Travel: 24.8"
Spindle Speed: 3,000 RPM
Spindle Motor: 38 HP
Spindle Taper: 50 CT
Table Size: 55.12" x 55.12"
Weight: 40,000 LBS

Spindle Type R
Spindle Diameter 105 mm
Spindle ISO 50
Spindle Speed 10-3300 1/min
Spindle Torque nominal 919 NM
Spindle Torque Max 1148 NM
Spindle W axis 630 mm
Y axis 1250 mm
X axis 1800 mm
Max workpiece weight 5000 KG
table clamping surface 1400 X 1400 mm
working feedrate X,Y,Z,W : 5-5000 mm/min
Rapid X,Y,Z: 10,000 mm/min
Rapid W: 8,000 mm/min
Machine weight 17,600 KG
