Seller Needs:
$157,500|
1088
|
0

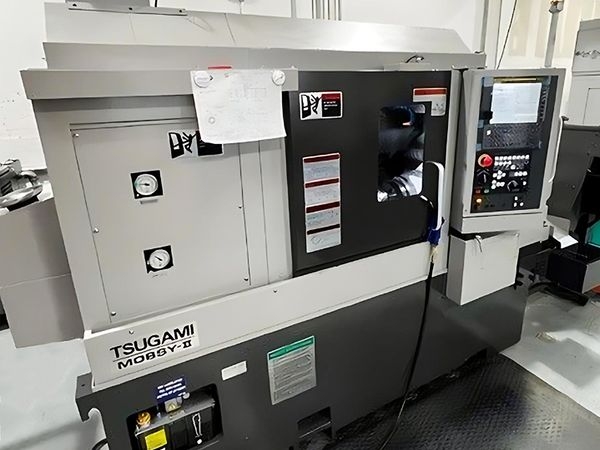

This 2022 TSUGAMI M08SYII CNC Lathe represents an incredible opportunity for any business seeking to build their equipment roster. It comes in like-new condition, boasting a meager 416 hours of cutting time logged. The health...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.56"
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 15 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 106" x 74" x 75"
Weight: 13,228 LBS
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 15 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 106" x 74" x 75"
Weight: 13,228 LBS
Options:
Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Edge Rebel V-65 Servo Short Bar Feeder
Tri Mist 850 Mist Collection System
HEPA Filter for Tri Mist
MP Systems, VR8 HPC pump – 1,000 psi for oil
Fire Suppression System
LNS Chip Conveyor
Red/Yellow/Green Patrol Light System
Royal QG65 Dead Length for Sub Spindle
Algra Radial Working Live Tool, Double Spindle offset in Y, ER20, External Coolant, Main or Sub Spindle
Spindle Liners
Coolant collector for 4 foot bar
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Edge Rebel V-65 Servo Short Bar Feeder
Tri Mist 850 Mist Collection System
HEPA Filter for Tri Mist
MP Systems, VR8 HPC pump – 1,000 psi for oil
Fire Suppression System
LNS Chip Conveyor
Red/Yellow/Green Patrol Light System
Royal QG65 Dead Length for Sub Spindle
Algra Radial Working Live Tool, Double Spindle offset in Y, ER20, External Coolant, Main or Sub Spindle
Spindle Liners
Coolant collector for 4 foot bar
Seller:
MichF315
Location:
NJ
