Seller Needs:
$71,500|
623
|
0

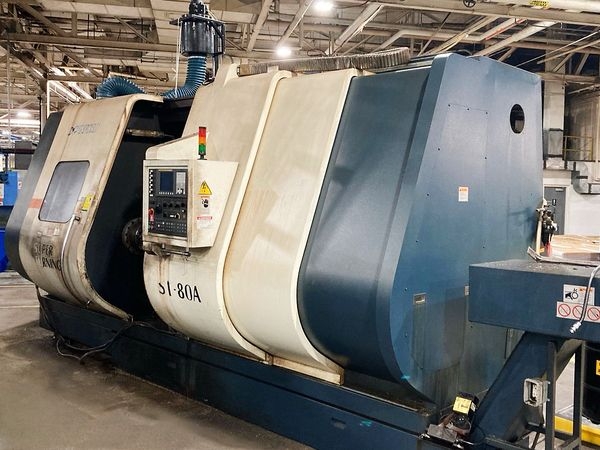

Pre-owned JOHNFORD ST80A 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Michigan. This JOHNFORD CNC Lathe is available for a limited time. ...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 4.1"
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 15.7"
Z Axis Travel: 78.7"
Turret Tools: 12 Station
Max Turning Dia: 27.5"
Max Swing: 27.5"
Distance between centers 88.5”
Spindle nose A2-11
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Quill diameter of tailstock 7.87"
Quill stroke of tailstock 5.9"
Quill taper of tailstock M.T. 7
Tailstock body travel 66.9”
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 15.7"
Z Axis Travel: 78.7"
Turret Tools: 12 Station
Max Turning Dia: 27.5"
Max Swing: 27.5"
Distance between centers 88.5”
Spindle nose A2-11
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Quill diameter of tailstock 7.87"
Quill stroke of tailstock 5.9"
Quill taper of tailstock M.T. 7
Tailstock body travel 66.9”
Options:
Fanuc Oi-T
Chip Conveyor
Tailstock
12" Hydraulic chuck
Hydraulic Steady Rest
Chip Conveyor
Tailstock
12" Hydraulic chuck
Hydraulic Steady Rest
Seller:
SonnG812
Location:
MI
