Seller Needs:
$98,500|
707
|
1

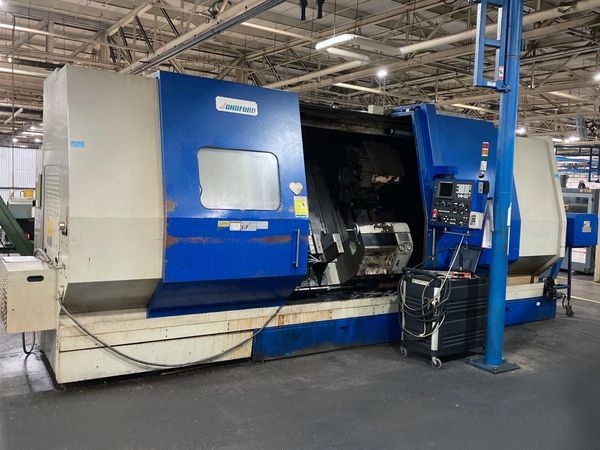

This 2002 JOHNFORD ST130A CNC Lathe is now available and in good working order. It has been looked after with regular care to keep it in top condition for daily use. The in-house team has been carrying out regular check-ups a...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 4.1"
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 15.7"
Z Axis Travel: 120"
Turret Tools: 12 Station
Max Turning Dia: 27.5"
Max Swing: 36.2"
Distance between centers 130”
Spindle:
Spindle Motor 50 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck)
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Turret tool positions 12
Tailstock:
Quill diameter of tailstock 7.87
Quill stroke of tailstock 5.9
Quill taper of tailstock M.T. 7
Tailstock body travel 110”
Hydraulic, programmable tailstock body and quill
Fanuc 18T control
Chuck Size: 12"
Spindle Speed: 3,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 15.7"
Z Axis Travel: 120"
Turret Tools: 12 Station
Max Turning Dia: 27.5"
Max Swing: 36.2"
Distance between centers 130”
Spindle:
Spindle Motor 50 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck)
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Turret tool positions 12
Tailstock:
Quill diameter of tailstock 7.87
Quill stroke of tailstock 5.9
Quill taper of tailstock M.T. 7
Tailstock body travel 110”
Hydraulic, programmable tailstock body and quill
Fanuc 18T control
Options:
Chip Conveyor
Tailstock
Hydraulic Steady Rest
Tailstock
Hydraulic Steady Rest
Seller:
SonnG812
Location:
MI
