Seller Needs:
$121,000|
562
|
0

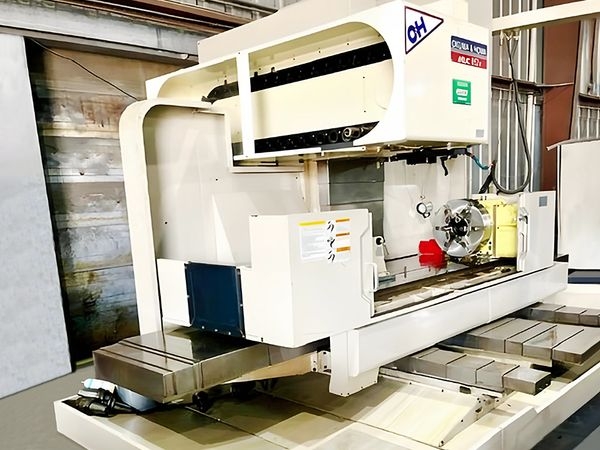

This 2006 OKUMA & HOWA MILLAC 852V Vertical Machining Center is an impressive piece of machinery ready to carry out precision operations. All in all, the Vertical Machining Center offers high-grade performance, ...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 80.71"
Y Axis Travel: 33.46"
Z Axis Travel: 29.53"
Spindle Motor: 30 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 50 CT
Tool Changer: 36 ATC
Rapid Rate X Axis: 630 IPM
Rapid Rate Y Axis: 630 IPM
Rapid Rate Z Axis: 630 IPM
Nikken Rotary:
Bore-thru: 7.48"
Chuck: 19.5"
Max Tool Weight: 44.0 LBS
Max Tool Diameter: 4.72" Full
Tool Change Time: 2.5 Sec
Spindle Nose To Table: 7.87 – 37.4" Max
Spindle Center to Column: 35.43
Table Size: 86.6" x 35.24"
Dimensions: 205.4" x 166.8" x 124.44"
Weight: 33,069 LBS
Y Axis Travel: 33.46"
Z Axis Travel: 29.53"
Spindle Motor: 30 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 50 CT
Tool Changer: 36 ATC
Rapid Rate X Axis: 630 IPM
Rapid Rate Y Axis: 630 IPM
Rapid Rate Z Axis: 630 IPM
Nikken Rotary:
Bore-thru: 7.48"
Chuck: 19.5"
Max Tool Weight: 44.0 LBS
Max Tool Diameter: 4.72" Full
Tool Change Time: 2.5 Sec
Spindle Nose To Table: 7.87 – 37.4" Max
Spindle Center to Column: 35.43
Table Size: 86.6" x 35.24"
Dimensions: 205.4" x 166.8" x 124.44"
Weight: 33,069 LBS
Options:
FANUC 16i MB Control
4th Axis Rotary Table
Chip Auger
All available Books & Manuals
4th Axis Rotary Table
Chip Auger
All available Books & Manuals
Seller:
GaryL978
Location:
TX
