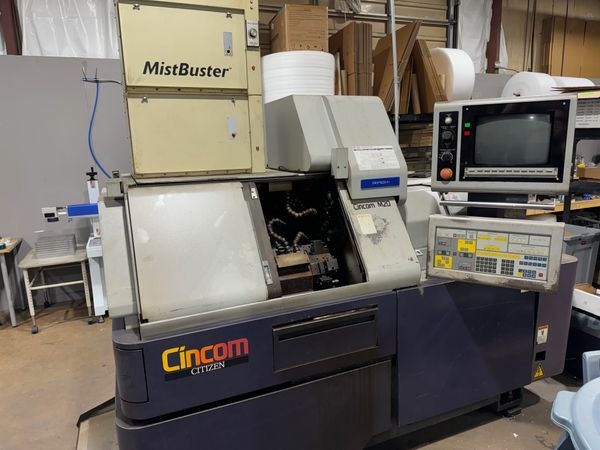

Pre-owned CITIZEN M20 1998 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This CITIZEN CNC Lathe is available for a limited time. Get a quo...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
Bar Capacity: 0.787"
Spindle Speed: 8,100 RPM
Max Turning Length: 12.6"
Maximum Machining Length: 12.6' / 320 mm
Main Spindle Speeds: 200 - 8,100 RPM
Back Spindle Speeds: 150 - 7,200 RPM
Rotary Tool Speeds: 250 - 5,000 RPM Main Slide
Back Spindle Max Chucking Diameter: 20 mm / .787"
Turning Tools: 5 static
Rotary (Live) Tools: 3 live on Main Slide
Rapid Traverse (X/Y/Z): 590 / 708 IPM
Main Spindle Drive: 3 HP
Back Spindle Drive: 1 HP
Rotary Tool Drive: .54 HP
Cutting Tool Shank/Sleeve Size: 13 X 13 mm
Main Spindle Indexing: Full C-Axis (.001 degree)
Sub-Spindle Indexing: 15 Degree Increments
Turret Capacity: 10 Stations (Live)
Turret Live Tool Speed: 320 - 6,300 RPM
Weight: 4,600 LBS
Spindle Speed: 8,100 RPM
Max Turning Length: 12.6"
Maximum Machining Length: 12.6' / 320 mm
Main Spindle Speeds: 200 - 8,100 RPM
Back Spindle Speeds: 150 - 7,200 RPM
Rotary Tool Speeds: 250 - 5,000 RPM Main Slide
Back Spindle Max Chucking Diameter: 20 mm / .787"
Turning Tools: 5 static
Rotary (Live) Tools: 3 live on Main Slide
Rapid Traverse (X/Y/Z): 590 / 708 IPM
Main Spindle Drive: 3 HP
Back Spindle Drive: 1 HP
Rotary Tool Drive: .54 HP
Cutting Tool Shank/Sleeve Size: 13 X 13 mm
Main Spindle Indexing: Full C-Axis (.001 degree)
Sub-Spindle Indexing: 15 Degree Increments
Turret Capacity: 10 Stations (Live)
Turret Live Tool Speed: 320 - 6,300 RPM
Weight: 4,600 LBS
Options:
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
