Seller Needs:
$99,000|
1265
|
3

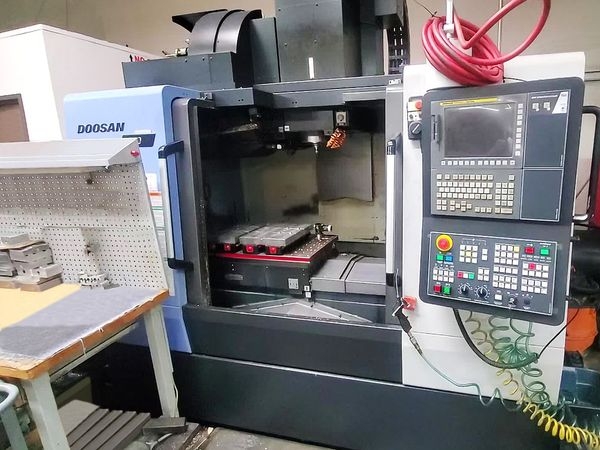

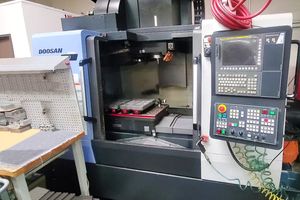

Pre-owned 2020 DOOSAN DNM4500 Vertical Machining Center. This Vertical Machining Center has below average cutting time at 3,591 spindle hours, and is equipped with a Fanuc i Series control, 12,000 RPM Cat40 Big Plus Spi...Read More
Seller Needs:
Payment:
Specs:
Table Size: 39.4" x 17.7"
Max Table Load: 1,320 Lbs.
X-axis: 31.5"
Y-Axis: 17.7"
Z-Axis: 20.1"
X, Y Z Rapids: 1,417 / 1,181 IPM
Spindle Nose to Table Top: 5.9" - 26"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT40 Big Plus
Spindle Motor: 25 H.P.
ATC Style: Sidemount
ATC Positions: 30 + 1
EQUIPPED WITH:
Fanuc I-Series CNC Control
ATS RT-160 4th Axis Rotary Table
2 Chick Double Vises
Tool Setter
Spindle Probe
Sub Plate
Misc Tooling
Hours:
Power On: 9,848
Run Time: 3,954
Cutting Time: 3,591
Max Table Load: 1,320 Lbs.
X-axis: 31.5"
Y-Axis: 17.7"
Z-Axis: 20.1"
X, Y Z Rapids: 1,417 / 1,181 IPM
Spindle Nose to Table Top: 5.9" - 26"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT40 Big Plus
Spindle Motor: 25 H.P.
ATC Style: Sidemount
ATC Positions: 30 + 1
EQUIPPED WITH:
Fanuc I-Series CNC Control
ATS RT-160 4th Axis Rotary Table
2 Chick Double Vises
Tool Setter
Spindle Probe
Sub Plate
Misc Tooling
Hours:
Power On: 9,848
Run Time: 3,954
Cutting Time: 3,591
Options:
Fanuc i Series
Probe
Programmable Coolant
4th Axis Rotary Table
Probe
Programmable Coolant
4th Axis Rotary Table
Seller:
MikeR291
Location:
AZ
