Seller Needs:
$168,000|
2097
|
0

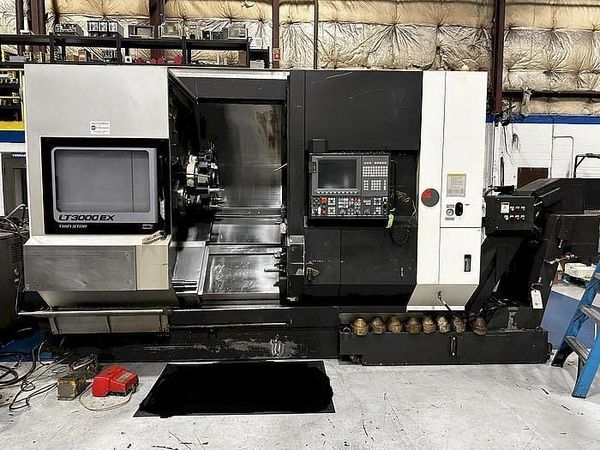

This 2013 OKUMA LB3000EXBBMY CNC Lathe is up for sale. It is a used machine yet is in good working order and is ready to be put to use in your shop. This OKUMA CNC Lathe model has added extras and improvements that make it gr...Read More
Seller Needs:
Payment:
Specs:
Control Type: OSP-P300L
# Axis: 9
Swing: 21.66"
Turning Diameter: 13.78"
Center Distance: 47.25"
Bar Capacity: 2.75"
X Axis Travel: 10.04"
X2 Travel: 10.04"
Z Axis Travel: 36.61"
Z2 Travel: 36.61"
Y-Axis Travel: 4.92"
C1/C2 Axis Index: 0.001°
B Axis Travel (Sub Spindle): 37.01"
Spindle Nose: A2-6
Spindle Speed: 5,000 rpm
Main Motor: 30 hp
Sub Spindle Bar Capacity: 2.75"
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor: 30 hp
Live Tooling Speed: 6,000 rpm
Live Milling Motor: 10 hp
Number Of Turrets: 2
Turret Capacity: 16 + 16
Machine Dimensions: 158" x 110" x 118"
Machine Weight: 25,000 LBS
# Axis: 9
Swing: 21.66"
Turning Diameter: 13.78"
Center Distance: 47.25"
Bar Capacity: 2.75"
X Axis Travel: 10.04"
X2 Travel: 10.04"
Z Axis Travel: 36.61"
Z2 Travel: 36.61"
Y-Axis Travel: 4.92"
C1/C2 Axis Index: 0.001°
B Axis Travel (Sub Spindle): 37.01"
Spindle Nose: A2-6
Spindle Speed: 5,000 rpm
Main Motor: 30 hp
Sub Spindle Bar Capacity: 2.75"
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor: 30 hp
Live Tooling Speed: 6,000 rpm
Live Milling Motor: 10 hp
Number Of Turrets: 2
Turret Capacity: 16 + 16
Machine Dimensions: 158" x 110" x 118"
Machine Weight: 25,000 LBS
Options:
OSP-P300L
Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
Prepped for a Barfeed
High Pressure Coolant System
Hi-G Control
Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
Prepped for a Barfeed
High Pressure Coolant System
Hi-G Control
Seller:
JoeU708
Location:
MI
