Seller Needs:
$109,000|
762
|
5

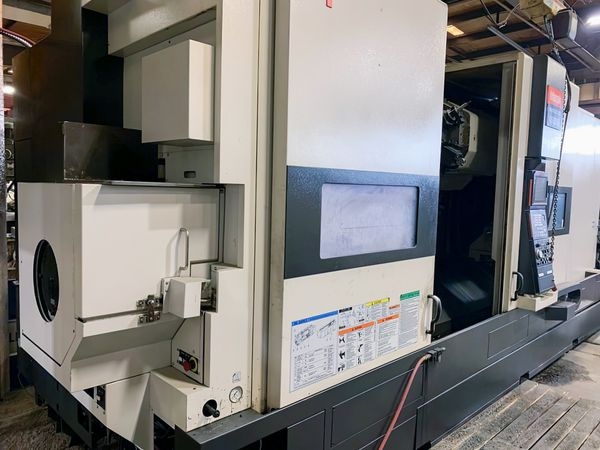

This 2006 MAZAK CYBERTECH TURN 4500M CNC Lathe is a valued asset worth noting. The machine is located in Oklahoma and is in good condition. The reason for selling is because it is no longer in use. Moreover, it is available i...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 12"
Chuck Size: 24"
Spindle Speed: 2,400 RPM
Spindle Motor: 50 HP
X Axis Travel: 21.26"
Z Axis Travel: 83.27"
Turret Tools: 12 Station
Max Turning Dia: 31.89"
Max Turning Length: 82.36"
Max Swing: 33.86"
Spindle Bore Diameter: 12.5"
C Axis Rotation: 0.001*
W Axis Travel: 80.12"
Live Milling Tool Speed: 3000 RPM
Live Tooling Motor: 15 HP
Weight: 40,300 LBS
Chuck Size: 24"
Spindle Speed: 2,400 RPM
Spindle Motor: 50 HP
X Axis Travel: 21.26"
Z Axis Travel: 83.27"
Turret Tools: 12 Station
Max Turning Dia: 31.89"
Max Turning Length: 82.36"
Max Swing: 33.86"
Spindle Bore Diameter: 12.5"
C Axis Rotation: 0.001*
W Axis Travel: 80.12"
Live Milling Tool Speed: 3000 RPM
Live Tooling Motor: 15 HP
Weight: 40,300 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Mazatrol PC-Fusion-CNC 640MT Pro Control
Kitagawa B24 165mm hole 24" 3 Jaw Chuck bought new 5/2021
N-EIA/ISO Option Package
12.1” Color LCD
Milling-Spindle Synchronous Tapping
PCMCIA I/F (2 Slot, Cardbus)
3.5 FDD Unit
Network Interface
Operator Door Interlock with Lock-Switch
Hydraulic Pressure Interlock
12-position drum turret with 12-turning and/or 12-rotary tools
Built-in premium threading function
Fully programmable servo driven tailstock
Mazatrol conversational CNC and/or G code format
Spindle Bore: Dia.320mm(12.5”)/750RPM
Windows 2000 Operating System for Mazak Machine Control
High Power Coolant 113psi (ENG#29165 Modification to Change 113 psi to 213psi.)
Preparation for rear mtd chuck (21” max dia)
Re-Threading
Tool Presetter
Tailstock
Live Tooling
Mazatrol PC-Fusion-CNC 640MT Pro Control
Kitagawa B24 165mm hole 24" 3 Jaw Chuck bought new 5/2021
N-EIA/ISO Option Package
12.1” Color LCD
Milling-Spindle Synchronous Tapping
PCMCIA I/F (2 Slot, Cardbus)
3.5 FDD Unit
Network Interface
Operator Door Interlock with Lock-Switch
Hydraulic Pressure Interlock
12-position drum turret with 12-turning and/or 12-rotary tools
Built-in premium threading function
Fully programmable servo driven tailstock
Mazatrol conversational CNC and/or G code format
Spindle Bore: Dia.320mm(12.5”)/750RPM
Windows 2000 Operating System for Mazak Machine Control
High Power Coolant 113psi (ENG#29165 Modification to Change 113 psi to 213psi.)
Preparation for rear mtd chuck (21” max dia)
Re-Threading
Seller:
DeniF502
Location:
OK
